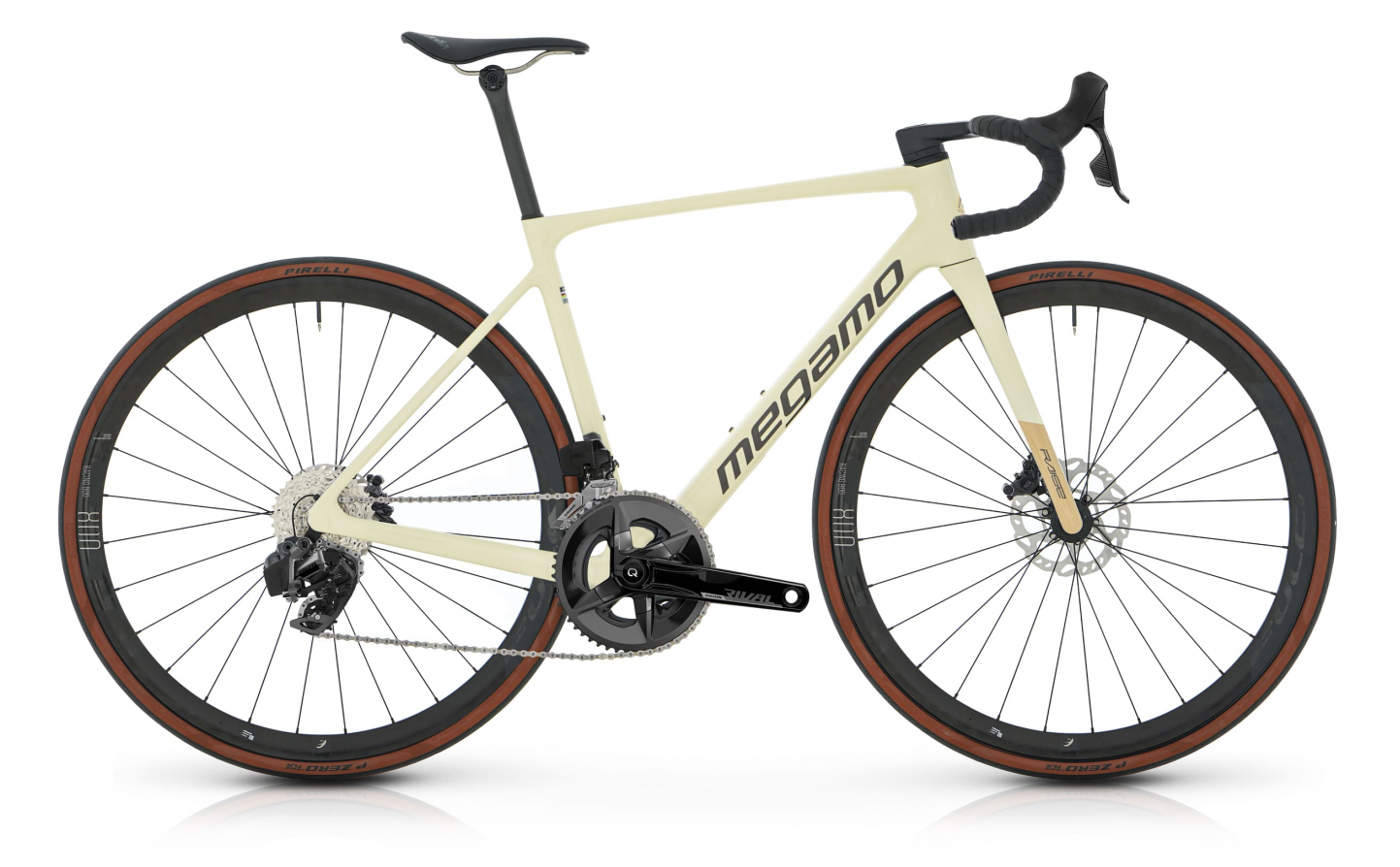

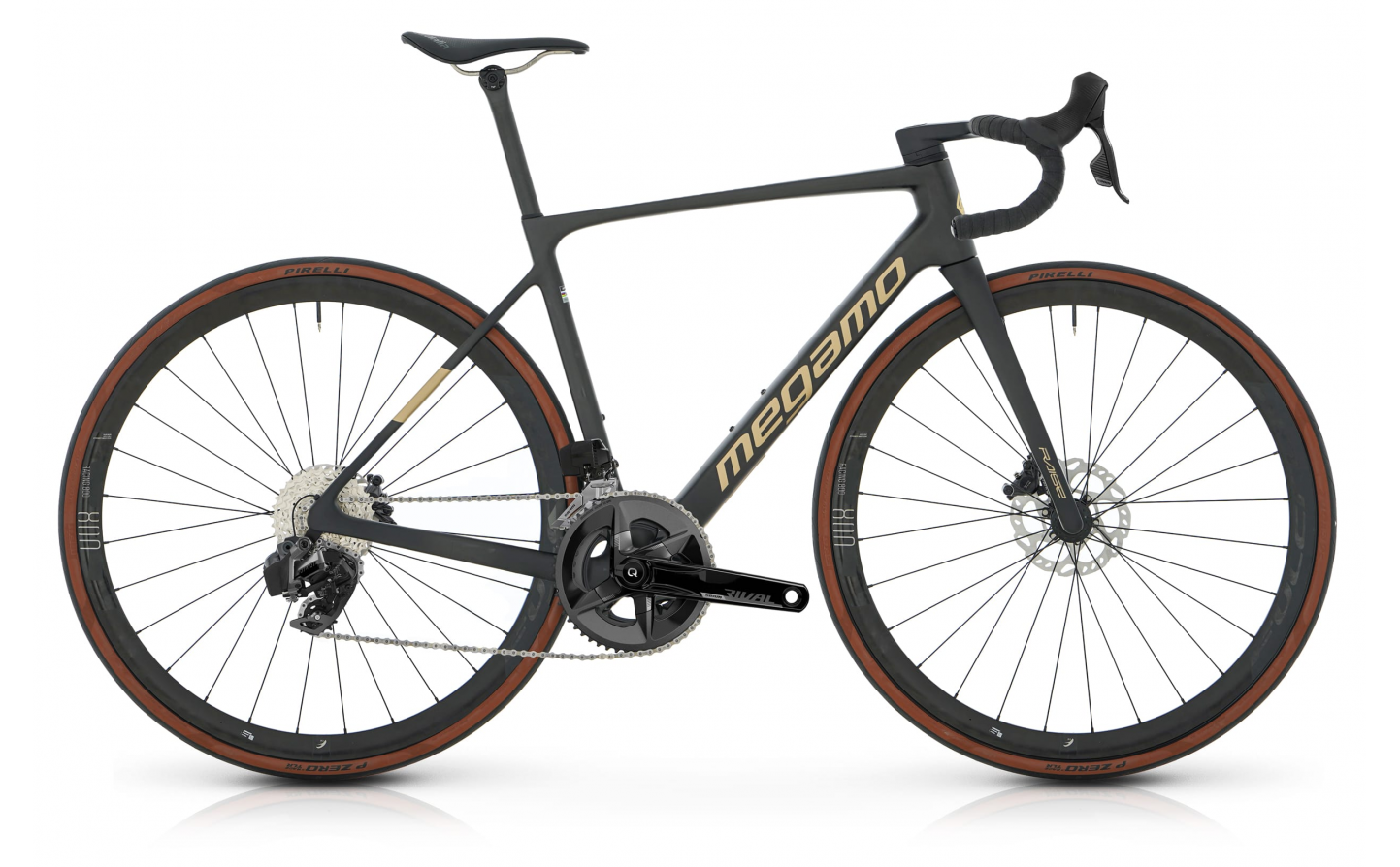

Bicicleta Megamo RAISE 09 AXS 2025
Información técnica
Conjunto del cuadro
- Cuadro: Carbon Advanced Composite frame, Full Internal Cable Routing, Flat Mount Disc Brakes 12x142
- Horquilla: Carbon Advanced Composite fork, Full Internal Cable Routing, Flat Mount Disc Brakes 12x100
- Juego de dirección: Totally Internal Cable routing
Transmisión
- Cambio Trasero: Sram Rival AXS 12s
- Desviador: Sram Rival AXS 12s
- Manetas cambio: Sram Rival AXS 12s
- Plato: Sram Rival AXS 12s 48-35 Powermeter
- Cassette: Sram Rival AXS 12s 10-36t
Frenos
- Conjunto de frenos: Sram Rival AXS 12s
Ruedas
- Cubiertas: Pirelli P Zero RC TLR Classic / Vittoria Rubino Pro IV 700x28 TLR G2.0
- Ruedas: Fulcrum Racing 800 DB
Componentes
- Manillar: Carbon Full Integratted Internal Cable Routing: 80/380 (XS), 90/400 (S), 100/400 (M), 110/420 (L), 120/440 (XL)
- Tija sillín: Megamo 27,2mm
- Sillín: Selle Italia Novus Boost Evo Superflow Titanium
*Megamo se reserva el derecho a modificar cualquier componente, por uno de igual valor en caso de ser necesario, sin previo aviso.
Geometría

Talla | T/T | C/S | S/T | H/T | REACH | STACK | BB OFFSET | FRONT ANGLE | REAR ANGLE |
---|
XS | 507 | 410 | 442 | 102 | 376 | 506 | 69 | 71.75° | 75.5º |
S | 527 | 410 | 460 | 115 | 383 | 521 | 69 | 72.5° | 74.5º |
M | 538 | 410 | 482 | 130 | 384 | 534 | 69 | 73° | 74º |
L | 554 | 410 | 503 | 145 | 396 | 550 | 69 | 73.5° | 74º |
XL | 572 | 410 | 535 | 172 | 402 | 576 | 69 | 73.5° | 73.5º |
