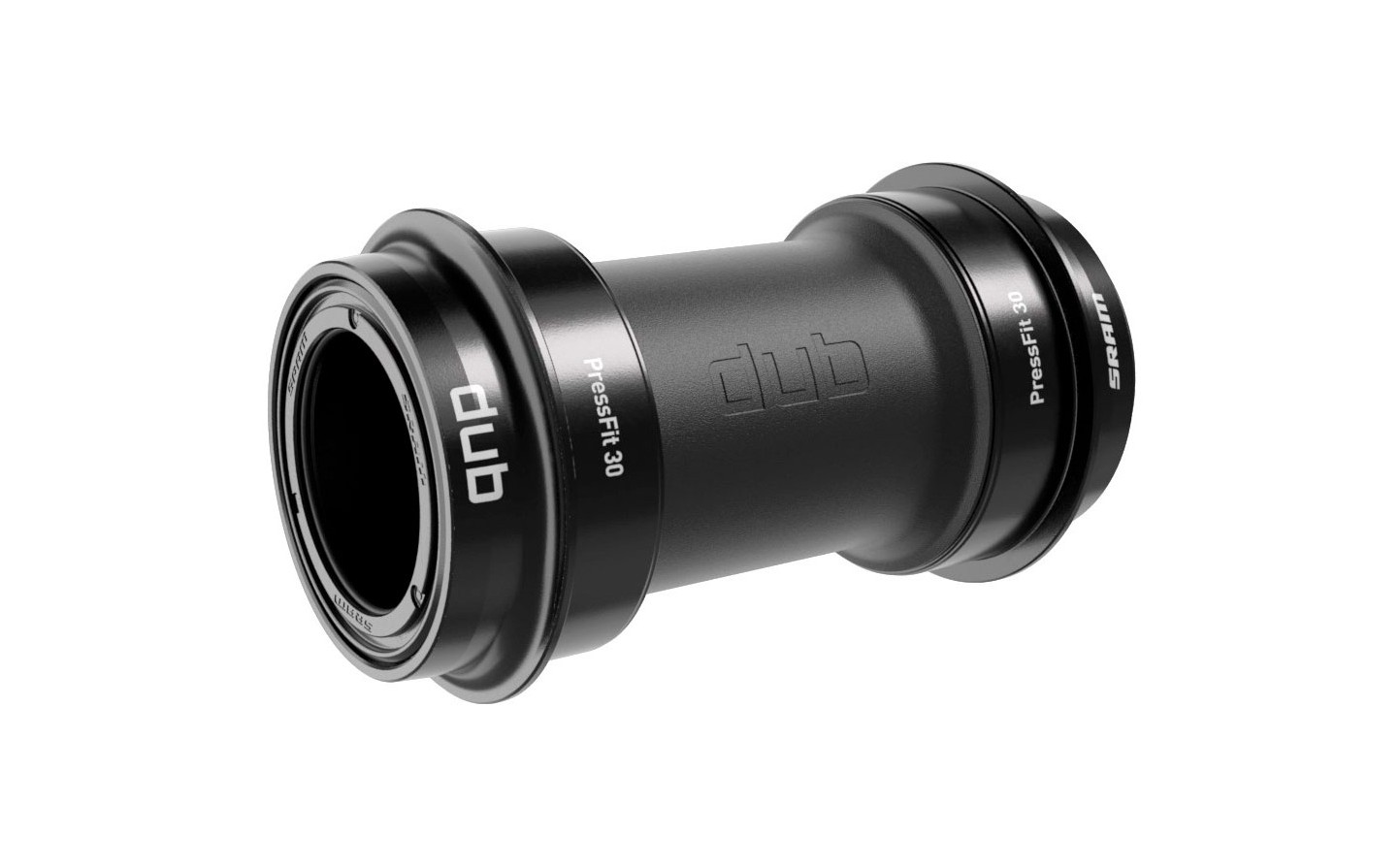

Sram DUB Pressfit 30 68mm Wide Bottom Bracket

Sram DUB Pressfit 30 68mm Wide Bottom Bracket

This Sram DUB Pressfit 30 Wide bottom bracket for a 68mm case width is your choice if you want to combine your PF30 frame with wider cranks.

The spacers create space for the crankshaft thereby widening the chainline. This shifts the electronically controlled AXS 2x12-speed front derailleurs to the outside, which in turn allows wider tires to be used, for example in Gravel applications.

The DUB offers you the perfect compromise between large bearings and axle stiffness.

CHARACTERISTICS

• Designed for Sram Force Wide DUB 2x12 speed cranks
• Bearings: Standard
• Inner bearing cup material: Steel
• 1 SRAM DUB Pressfit 30 68mm inner bearing
• 1 SRAM Spacer 5.5mm
• 1 SRAM Spacer 2.5 mm
• Fixation type: Pressfit PF30
• Bottom bracket diameter 46mm
• Bottom bracket width 68mm
• Shaft diameter 28.99mm (DUB)
