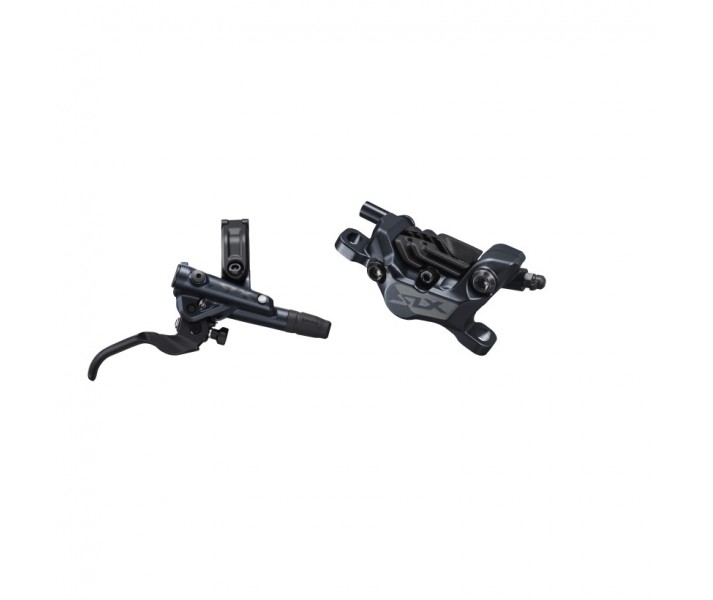

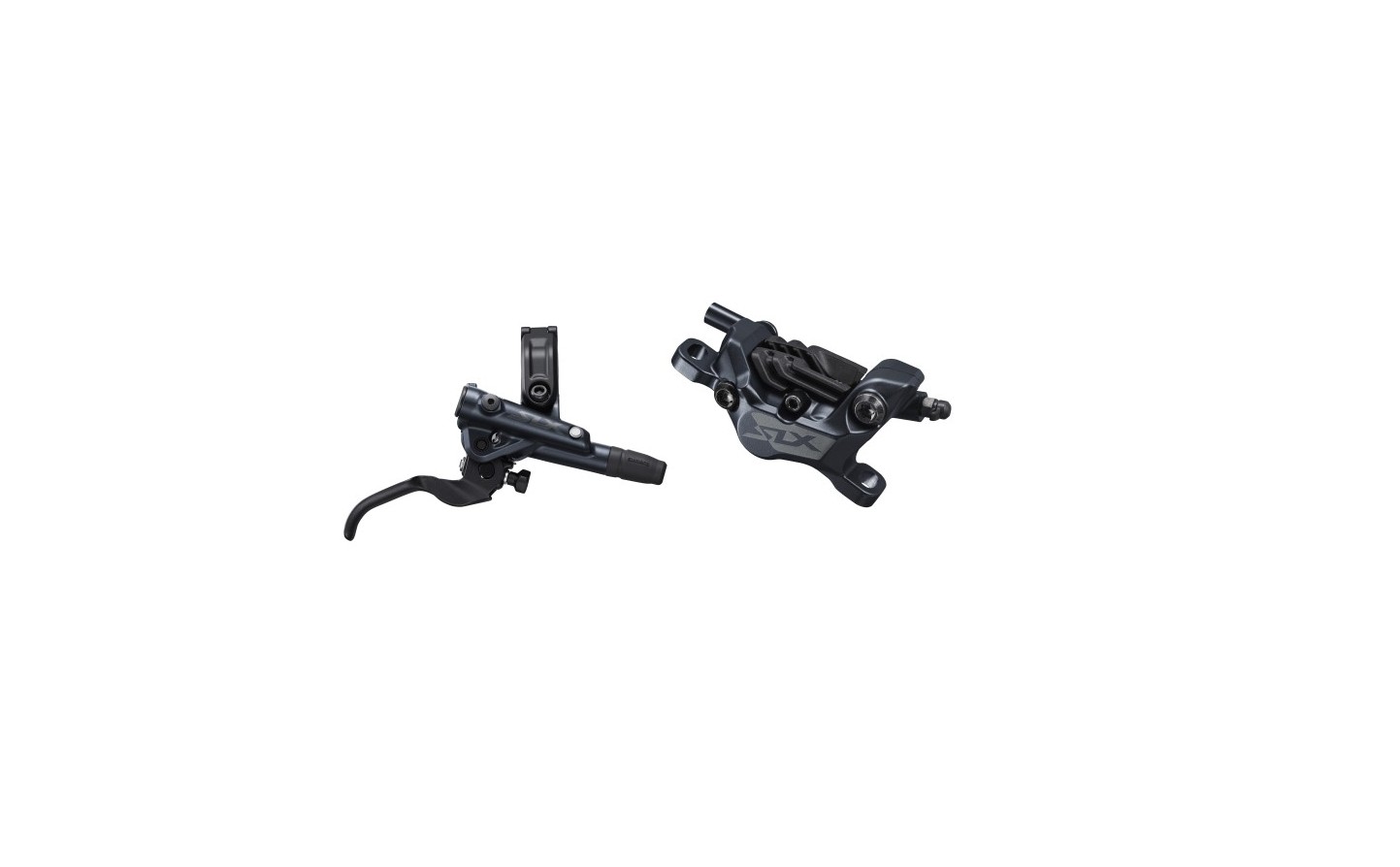

Shimano SLX M7120 Complete Front Disc Brake 4 pistons

Shimano SLX M7120 Complete Front Disc Brake 4 pistons

With a focus on weight reduction and mountain bike-appropriate stopping power, the SLX BL-M7100 lever provides intuitive modulation that allows the rider to explore their limits with confidence.

The SLX M7120 caliper offers consistent brake operation and reliable stopping power in all conditions. The 4-piston caliper improves confidence and control on descents.

CHARACTERISTICS

• Optimized position of the lever axis with an additional contact point and improved ergonomics
• 10% stiffer than M7000 even at high temperatures
• Faster brake application with shorter free travel
• The cockpit layout is more flexible and more optimized for the drive
• Tool-less reach adjustment
• Faster piston retraction
• Reduces brake disc vibration noise and increases braking power by 10% (compared to M7000)
• Four pistons
• Banjo type connection and internal hose routing

BENEFITS

• The perfect braking intensifies the concentration and enjoyment of the cyclist
• High performance, stable and versatile brake control
• User adjustable
• Easy installation and adjustment
• High braking power provides greater confidence and control on descents
• Quick and easy assembly

TECHNOLOGIES

• SERVOWAVE ACTION: When a SERVOWAVE brake lever is pulled, the pad's initial travel is fast, so only a slight movement of the lever is needed to bring the pads into contact with the brake disc. The power multiplying factor then increases rapidly at the “pad/rim” contact point, so lever travel is used to apply more stopping power with greater control.
• REACH ADJUST : The brake lever is equipped with a reach adjust mechanism. The distance between the handlebar grip and the lever can be adjusted to suit any hand size or type of riding, as well as individual rider preferences.
• I-SPEC V: Simple construction with narrow brake lever clamp. More space on the handlebars and a cleaner look.
• ICE TECHNOLOGIES: Loss of braking efficiency due to overheating, which can occur in the brake disc and pad when braking on long descents for example, has a negative impact on braking performance. SHIMANO has adopted the ICE TECHNOLOGIES brake disc and ICE TECHNOLOGIES pad to realize cooling technology that provides reliable performance. The coated brake disc blade, which has a 3-layer sandwich structure of stainless steel, aluminum and stainless steel, provides better radiation performance and allows it to go from 400°C to 300°C surface temperature. Likewise, a radiation fin has been adopted for the pickup. In addition, the coated brake disc blade and radiator fin offer long pad life, less noise, less loss of braking efficiency due to overheating and light weight.

PRODUCT SPECIFICATIONS

• Model No.: BR-M7120 // BL-M7100
• Series: SLX M7100
• Color: Standard
• Average weight (lever kit + caliper + hose + disc + pads): 444g
• Dual control handle.
• Caliper compatible with Ice Technology pads.
• Brake fluid: Shimano Mineral
• Recommended brake hose: SM-BH90-SBLS
• Recommended brake pad: H01A Resin, H03A Resin, H03C metal
• Recommended brake disc: SM-RT99, SM-RT86
