ORBEA WILD FS H20 2022 Bicycle |M346|

ORBEA WILD FS H20 e-MTB bicycle |M346| 2022

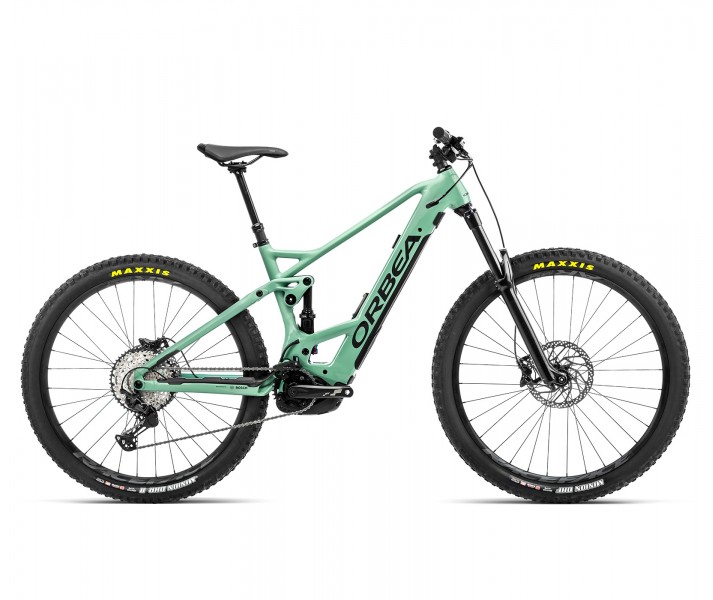

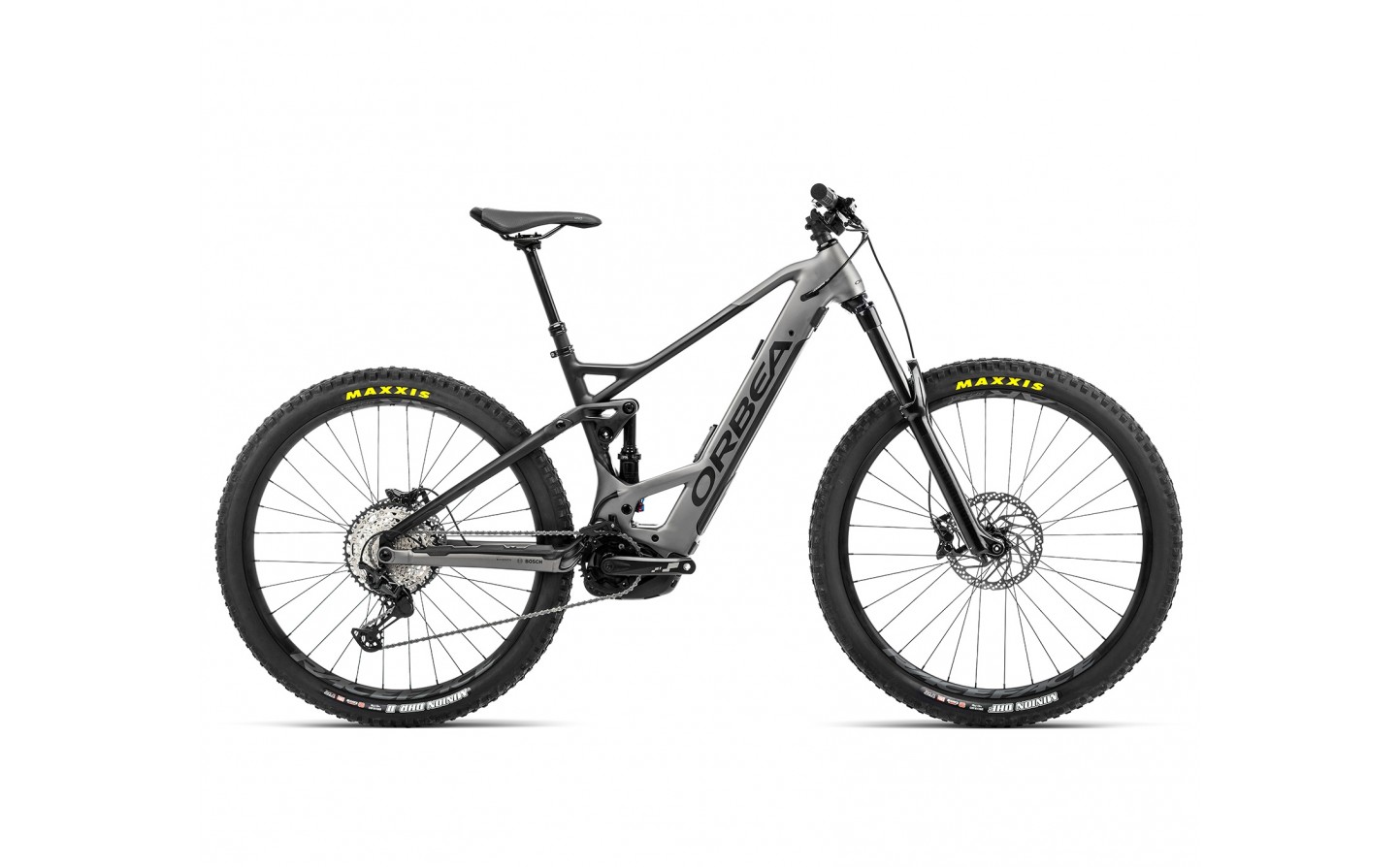

ORBEA WILD FS H20 electric MTB bike |M346| , with ORBEA WILD 160mm frame made of 6061 hydroformed aluminum . 160mm RockShox 35 Silver TK fork and Fox Float DPS Performance Trunnion shock. Shimano _ _ _ _

MAIN FEATURES

RECOVER YOUR WILD SIDE | It's time to move. Prepare your backpack and start pedaling. It's time to overcome the obstacles between you and those special places you want to reach. Demand capability and new adventures the way you like - on a fun, capable machine that boosts your skills while expanding your limits. Conquer steep climbs and push the limits of traction and descents on your way home. Enjoy intelligent design and sophisticated suspension, or simply focus on the trails ahead. Wild FS strengthens your bike rides and helps you reach new places.

GEOMETRY | The geometry of the new Wild FS has been designed to provide comfort and stability for beginners and so that no obstacle or terrain stops the most experienced riders.

• OPEN FRONT ANGLE Great stability
• LOWER BOTTOM BRACKET HEIGHT Natural and intuitive curve layout
• LONGER HORIZONTAL TUBE Space to move without losing balance
• GREATER WHEELBASE Stability at high speeds
• FORWARD PEDALING POSITION Optimized pedaling position
• SHORT SEAT TUBE For long dropper posts

KINEMATICS

• 160mm TRAVEL While some cyclists use them to climb thousands of meters on endless rides, others have fun with them descending and jumping in bike parks. Wild FS has been designed to give you this flexibility and adapt to your style.
• PROGRESSIVITY Its excellent adjustability and progressive leverage ratio offer better behavior and faster suspension recovery. The greater progression at the end of the stroke limits the internal forces transmitted to the frame, the suspension and the cyclist himself.
• ANTI - SQUAT DESIGN We've relocated the Wild FS main pivot point to work perfectly on single chainrings and adapted it to the increased bottom bracket height associated with 29er wheels. The balance between adaptability and efficiency gives this suspension an enormous range of capabilities.
• VERTICAL SUSPENSION Space and compact design. Vertical mounting is the perfect solution to accommodate an additional battery while maintaining low standover.

29' WHEELS / 160MM CRANKS

• MAXIMUM CAPACITY AND SPEED For those who want to enjoy maximum versatility on long, fast outings on variable terrain, the Wild FS 29 is undoubtedly the best option. Its 2.6 wide wheels provide a larger contact surface that translates into greater grip. By digging more knobs into the dirt with each lap, cornering grip and braking traction improve substantially.
• 160MM CRANKS The 160mm cranks not only help prevent pedal impacts against the ground, but also provide greater efficiency at higher cadences. This, added to the lower height of the bottom bracket shell, translates into greater stability.

MODULAR CAPACITY

• 2PAK Wild FS is prepared to house a second battery that extends its range up to no less than 1125 watts/hour, depending on the model.
• BOTTLE CAGE Wild FS has space to mount a standard bottle cage and attach a large number of different tool kits to it.
• BATTERY COVER A patented technical carbon or polymer cover that opens and closes using a simple and reliable locking wheel protects the battery.
• DISPLAY SUPPORT Our exclusive support allows three different mounting positions so that the display is in the place you prefer.
• KEY STORE The perfect place to store your battery keys: no more searching in your pockets and backpack!

STEERING LOCK / ENGINE PROTECTION

• STEERING LOCK The Blocklock cup protects the Wild FS frame by preventing the fork from impacting against it in the event of an accident.
• ENGINE PROTECTION In addition, the lower engine guard made of injection-molded polycarbonate is extremely resistant and much lighter than if it were made of metal. The perfect protection against those unexpected rocks and ledges.

OVERSIZED AXLE The suspension crank rotates on an oversized splined axle which increases rigidity compared to smaller axle designs.

CONSTRUCTION AND LEVELS

• OMR CARBON Orbea Monocoque Race (OMR) frames exclusively combine high modulus and high resistance fibers. Prepreg carbon sheets are laser cut to minimize overlaps and excess materials. Pre-moulding, which lasts for hours, guarantees optimal compaction with the minimum amount of carbon.
• COMBINATION OF CARBON AND ALUMINUM To reduce weight and offer value, Wild FS fuses the front triangle of the carbon model with the rear assembly of the hydroformed aluminum frame.

SPECIFICATIONS :

• ORBEA WILD Full Suspension 2021 Hydroformed Alloy 160mm Travel Boost 12x148 Bosch Gen4 FRAME
• SHOCK ABSORBER Fox Float DPS Performance Trunnion 3-Position Evol LV custom tune 205x65mm
• Fox 38 FORK
• PW PLATE EB04-NW32 G4
• ADDRESS
• HANDLEBAR OC1 35mm 12mm Rise 780mm
• POWER OC1 3D Forged 35mm interface 7º
• Shimano Deore M6100 I-Spec EV LEVERS
• BRAKE Shimano M420 Hydraulic Disc
• Shimano CS-M6100 10-51t 12-Speed SPROCKET
• Shimano XT M8100 SGS Shadow Plus Derailleur
• Shimano M6100 CHAIN
• Race Face AR 30c Tubeless Ready WHEEL
• TIRE Maxxis Minion DHF 2.60' 120 TPI FB 3C Maxx Terra Exo+ TR
• TIRE Maxxis Minion DHR II 2.60' 120 TPI FB 3C Maxx Terra Exo+ TR
• OC2 Dropper SEATPOST 31.6mm
• Shimano SL-MT500 I-Spec EV POST REMOTE
• SADDLE Selle Royal Vivo
• FRONT LIGHT
• LOCK Abus battery powertube lock PLUS
• CHAIN GUIDE Orbea OC chainguide 32-38t
• BOSCH Performance CX Cruise (25km/h) BDU450CX ENGINE
• BOSCH Powertube 625Wh Horizontal BBP290 BATTERY
• DUAL BATTERY
• DISPLAY BOSCH Performance Purion
• CHARGER Compact Charger 2A (100-240V) Worldwide
