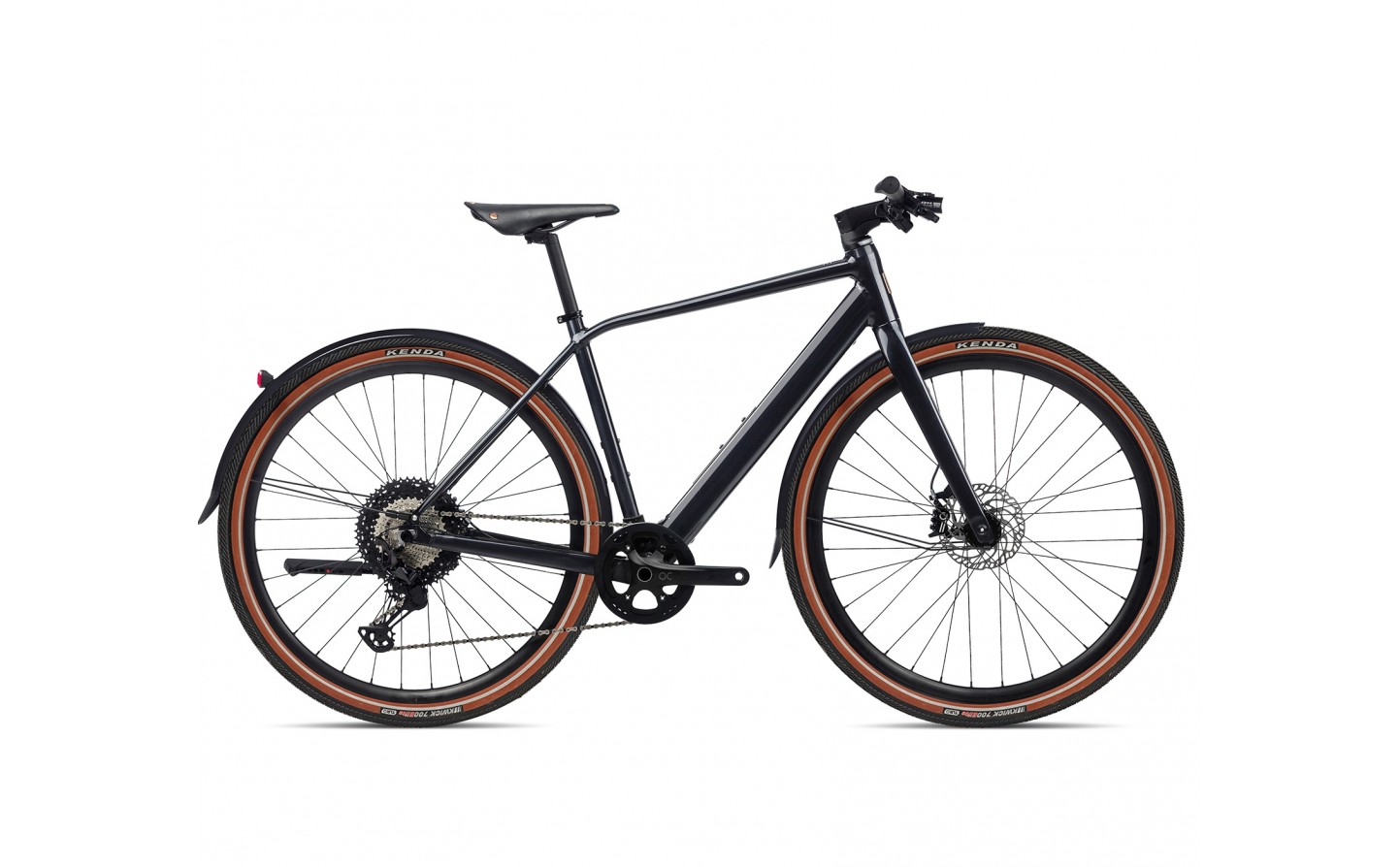

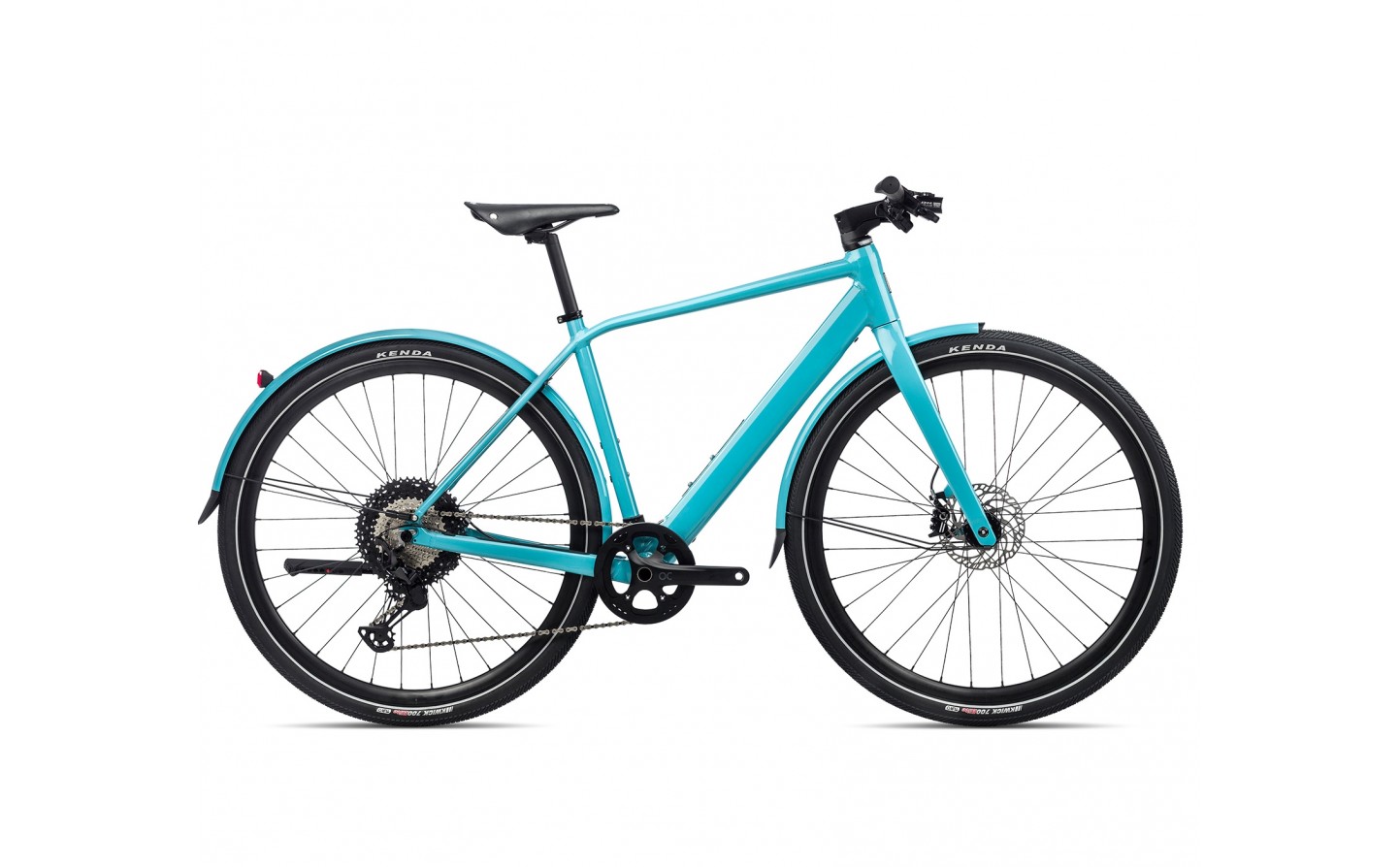

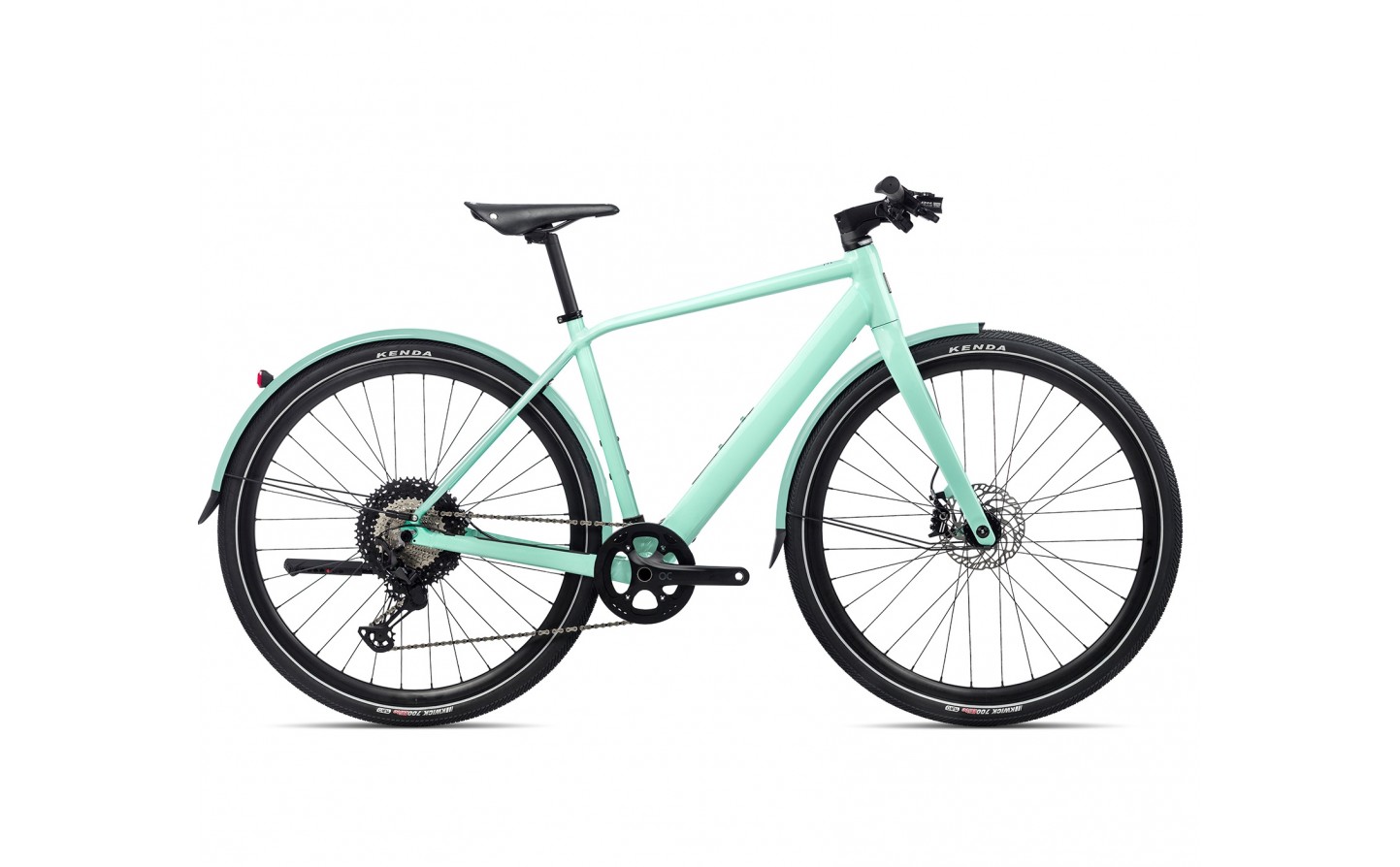

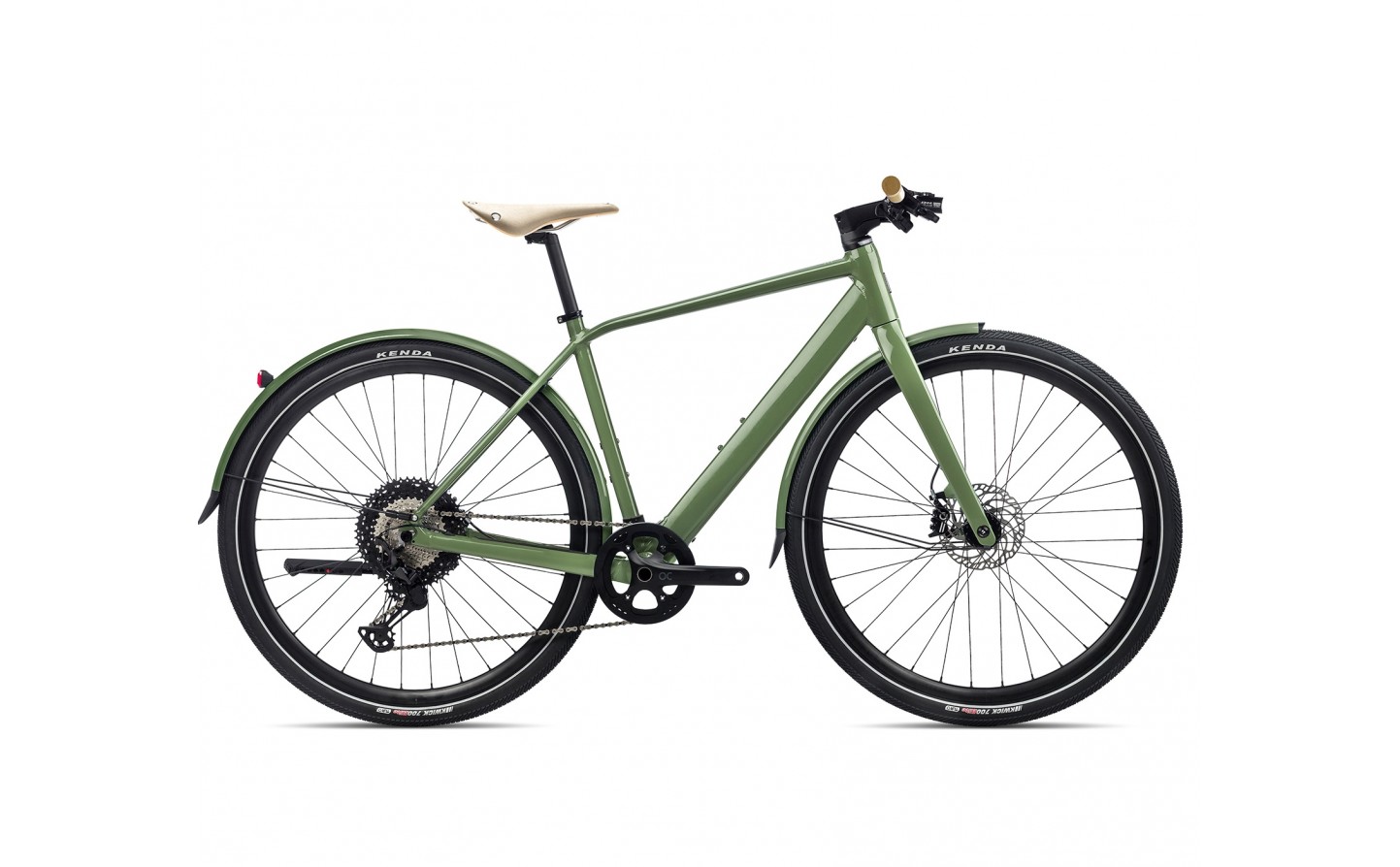

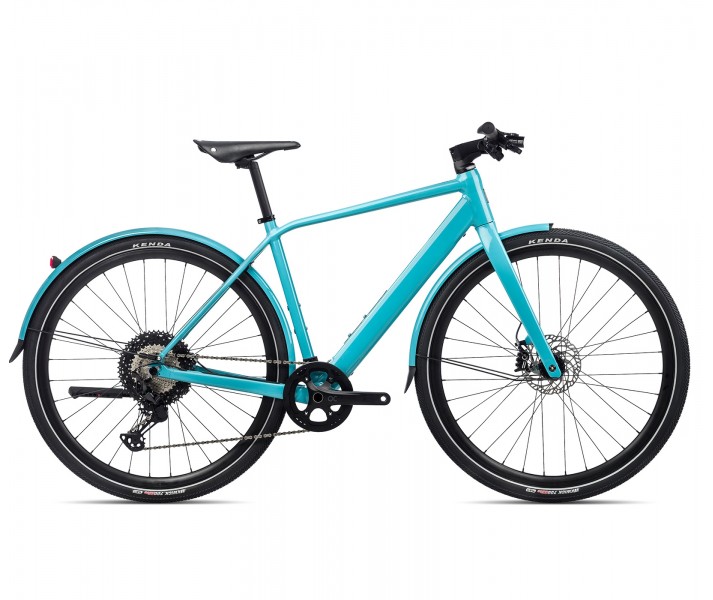

ORBEA VIBE H10 MUD 2022 Bicycle |M309|

ORBEA VIBE H10 MUD 2022 Bicycle |M309|

URBAN LIGHTNESS

Along with the spirit of functionality and simplicity of use that is transforming everything around us, we have developed a new transportation concept for your life. A sophisticated range that blends in with your aesthetic sense but without compromising it. An elegant tool that is easy to move around your home or workplace. Light and fun - with integrated motor, battery and electronics, the perfect bike for the city lifestyle.

ENOUGH ENERGY / MINIMALISM

Our 'Enough Energy' concept is going to revolutionize the way you ride a bike. The Vibe is a new type of electric bike: minimalist, integrated and elegant. It lacks bulky components in order to improve the riding experience and creates the impression that you can have more 'bike' with less 'electricity'.

URBAN GEOMETRY

In Orbea's urban geometry concept, the way in which cyclists use bikes in the city has been taken into account. The cyclist can be more upright as well as comfortable and increase his field of vision, which increases the feeling of security. The balance of the bike is perfect, and the steering responds well without feeling too fast. There is a frame option with a low bar designed to facilitate people with less mobility or with very tight clothing.

CONNECTIVITY AND GPS NAVIGATION WITH OFFLINE MAPS

Connect your smartphone to the EBikeMotion app and access detailed information about your bike's settings, as well as your ride data. Add a support for your mobile phone and easily guide yourself through the streets of your city thanks to the navigation system and offline maps included.

SPECIFICATIONS:

• Frame: Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45c maximum tire, 1'1/2 semi head set, 41x86.5 Pressfit BB, carrier and fenders compatible
• Fork: Orbea Vibe carbon fork, full carbon, 1-1/5', 700x45 maximum tire, flat mount disc mount, Thrue Axle 12x100mm, Long mudguards compatible
• Chainring: OC 42t, w/Chainguard
• Direction: Across Alloy 1-1/2' Internal cable routing
• Handlebar: Alloy 31.8mm 12mm Rise 700mm
• Stem: OC1 31.8mm interface -6º
• Levers: Shimano Deore M6100
• Brakes: Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
• Sprocket: SunRace CSMZ80 11-51t 12-Speed Metalic E-bike
• Derailleur: Shimano XT M8100 SGS Shadow Plus
• Chain: KMC X12
• Wheels: Ready GR 29-700c
• Tires: Kenda 1052 700x45c Reflective type TLR
• Pedals: VP-537 Black
• Seatpost: OC 27.2mm Offset 0º for integrated light
• Saddle: Brooks Cambium C15 283x140
• Fender: CURANA Apollo 55mm
• Front Position Light: Front position light, on head tube, COB LED, On/Off, 60 lumen, ECE50
• Front Light: Lezyne Ebike Power STVZO Pro E115 inverted position 310 lumens
• Rear Light: Lezyne FENDER STVZO seatpost mounting 11 lumens
• Cycle Support: Ursus Mooi R90 rear alloy adjustable
• Motor: Ebikemotion X35 Plus 25kmh
• Battery: Ebikemotion 36V/6.9A 248Wh ANT+
• Display: OC monochrome ANT+ LEV
• Charger: Ebikemotion X35
• Remote: Ebikemotion iWoc TRIO
• Doorbell: Knog OI Classic
