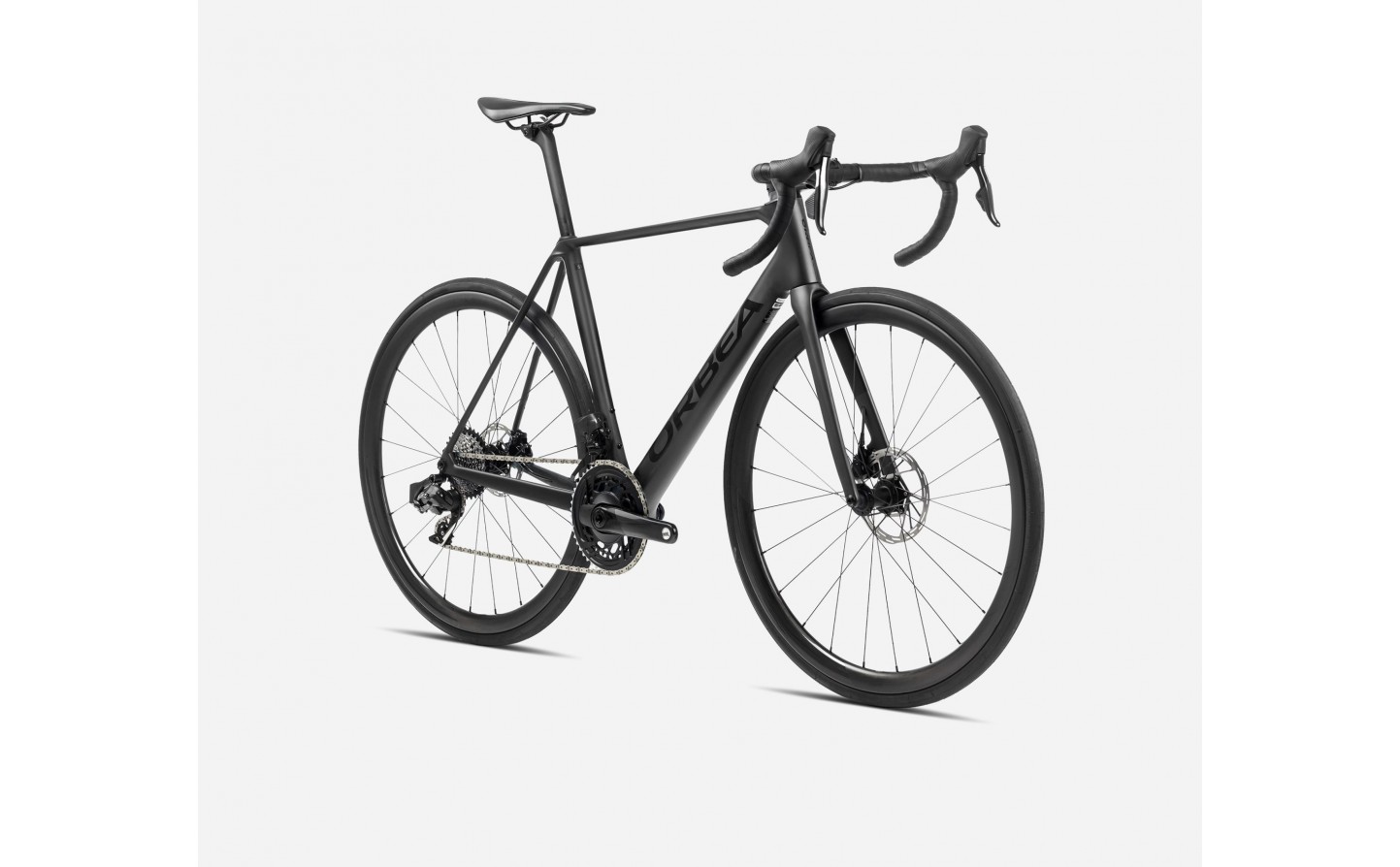

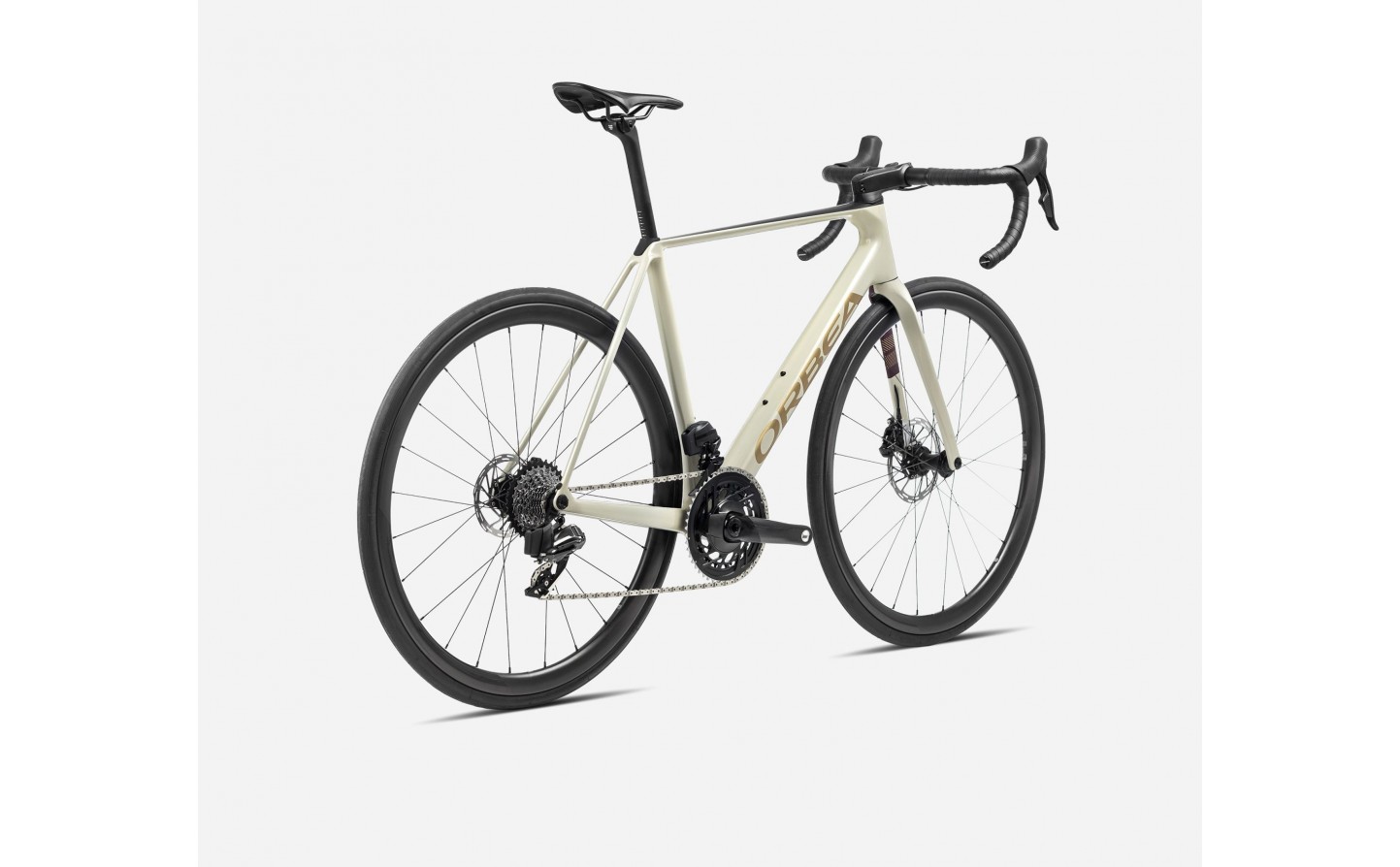

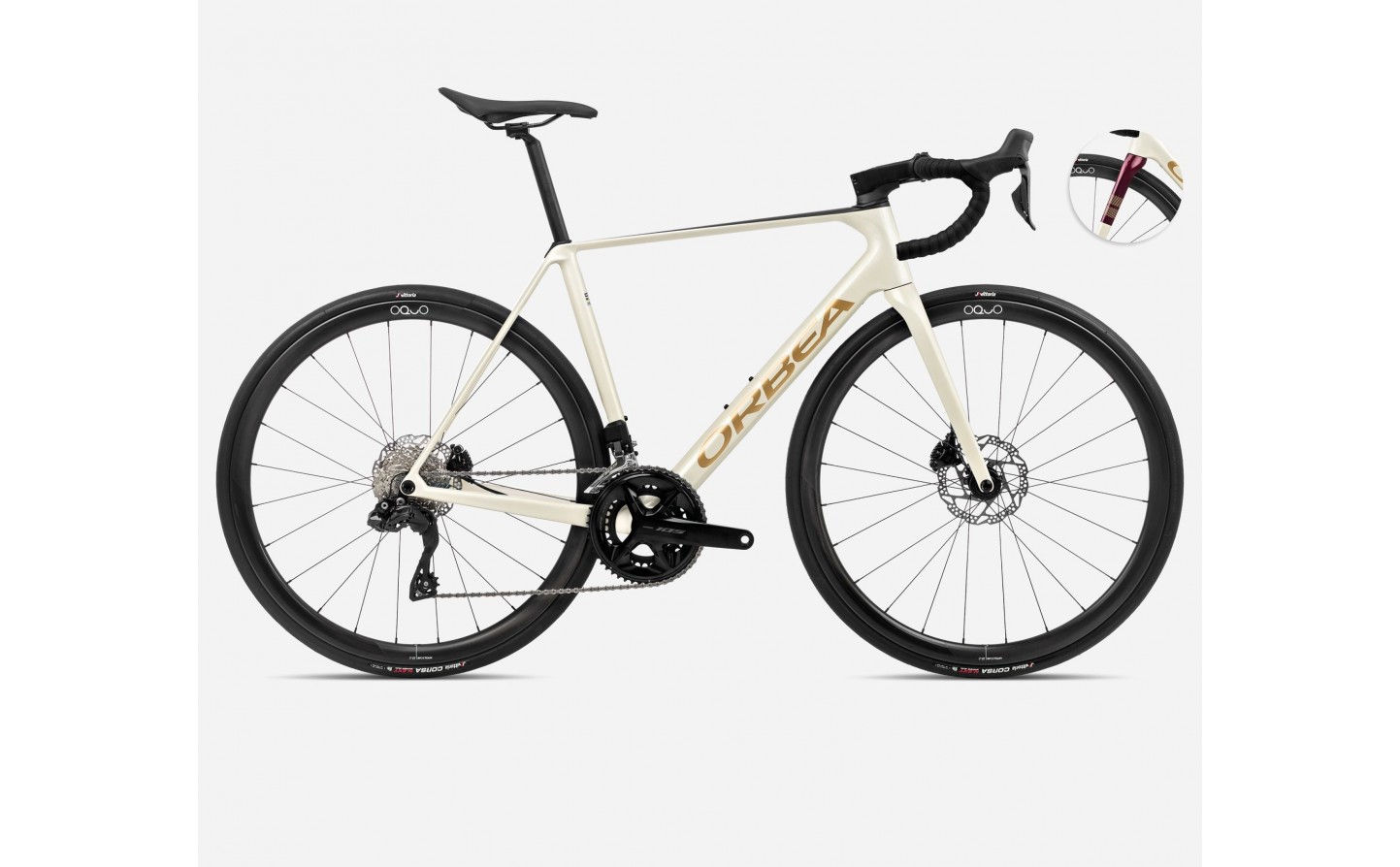

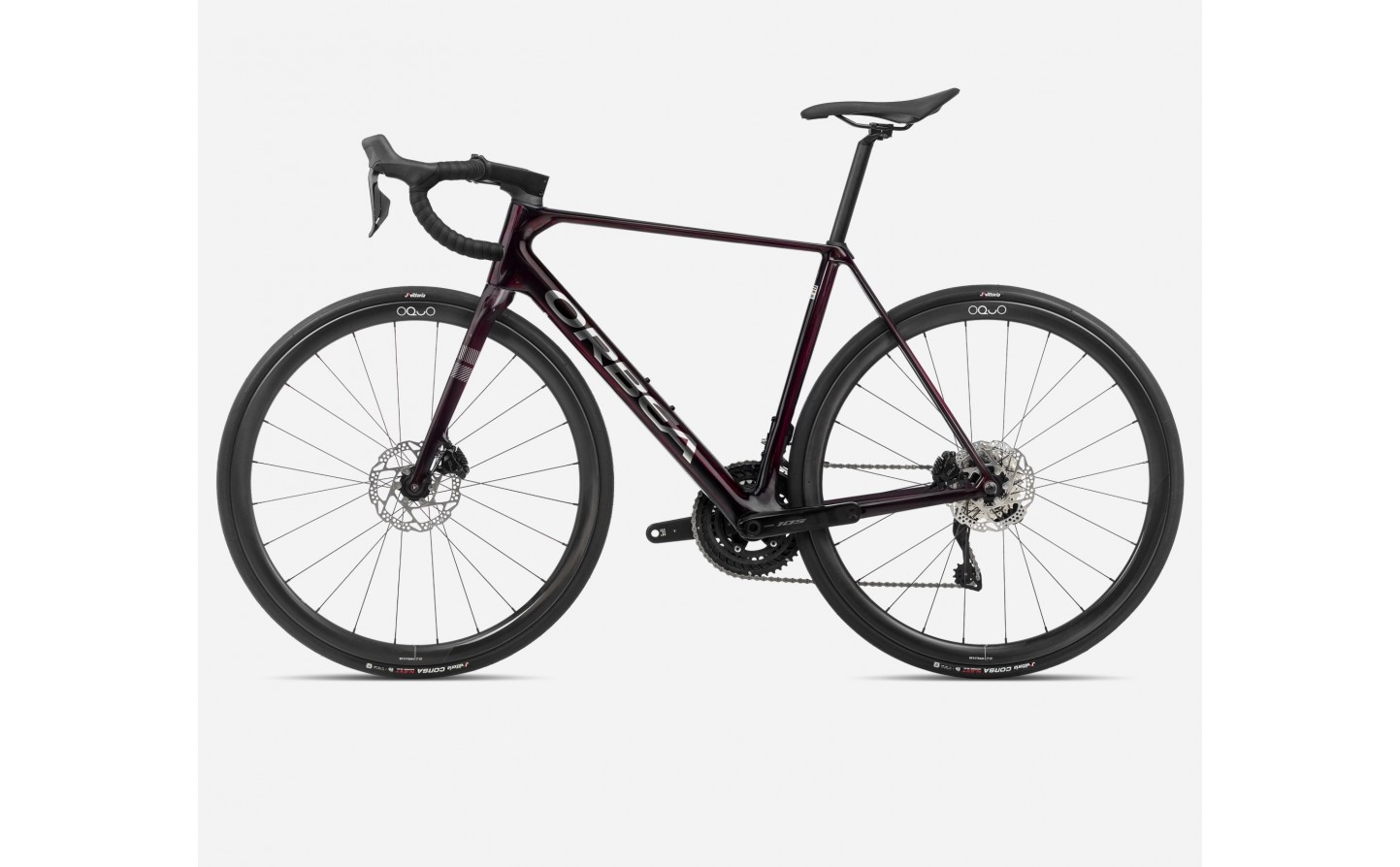

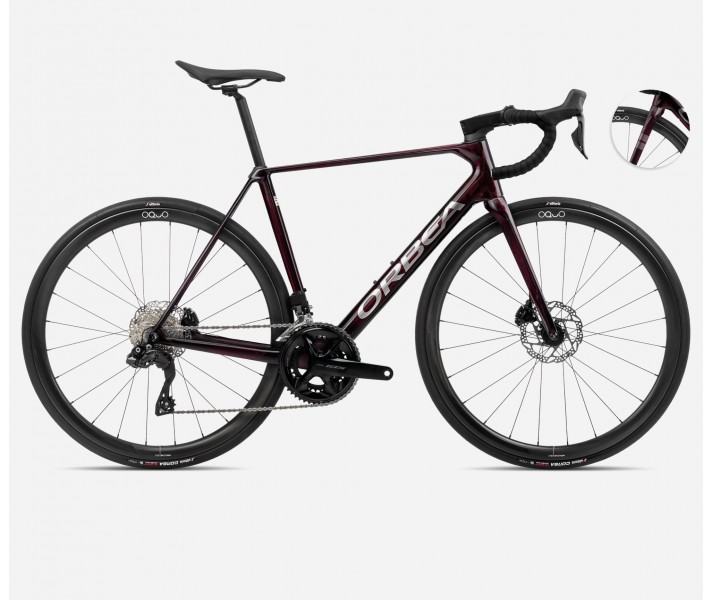

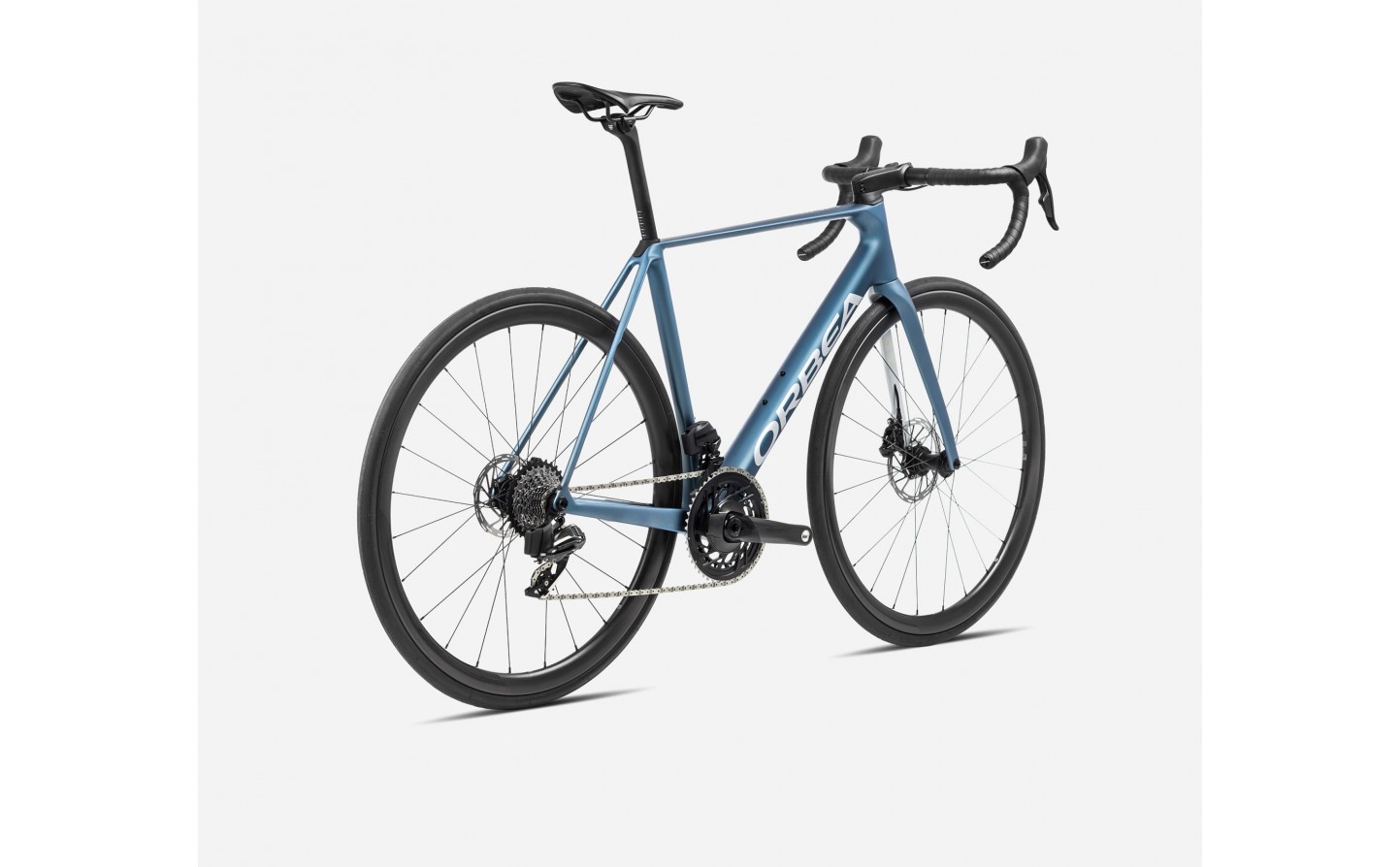

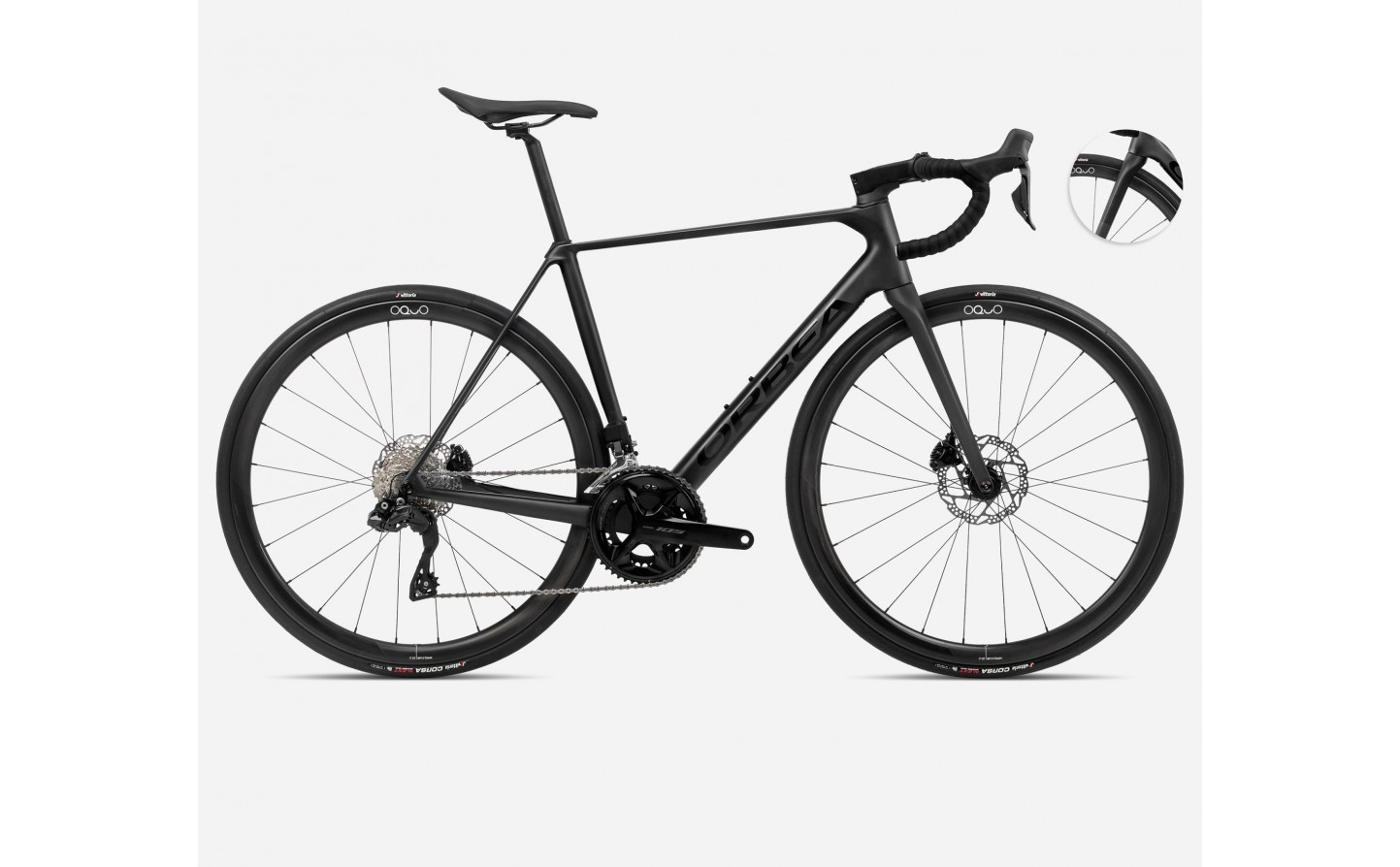

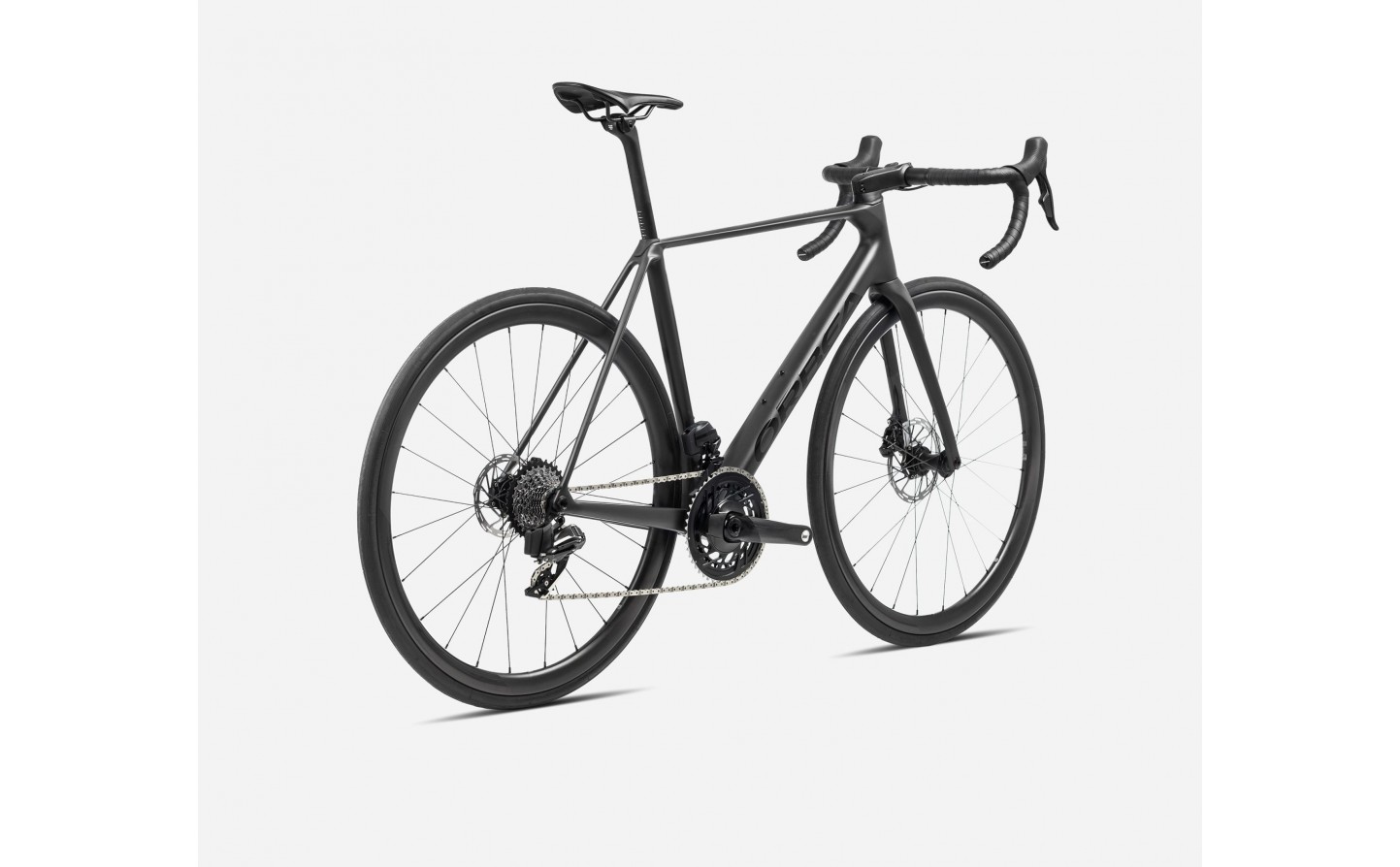

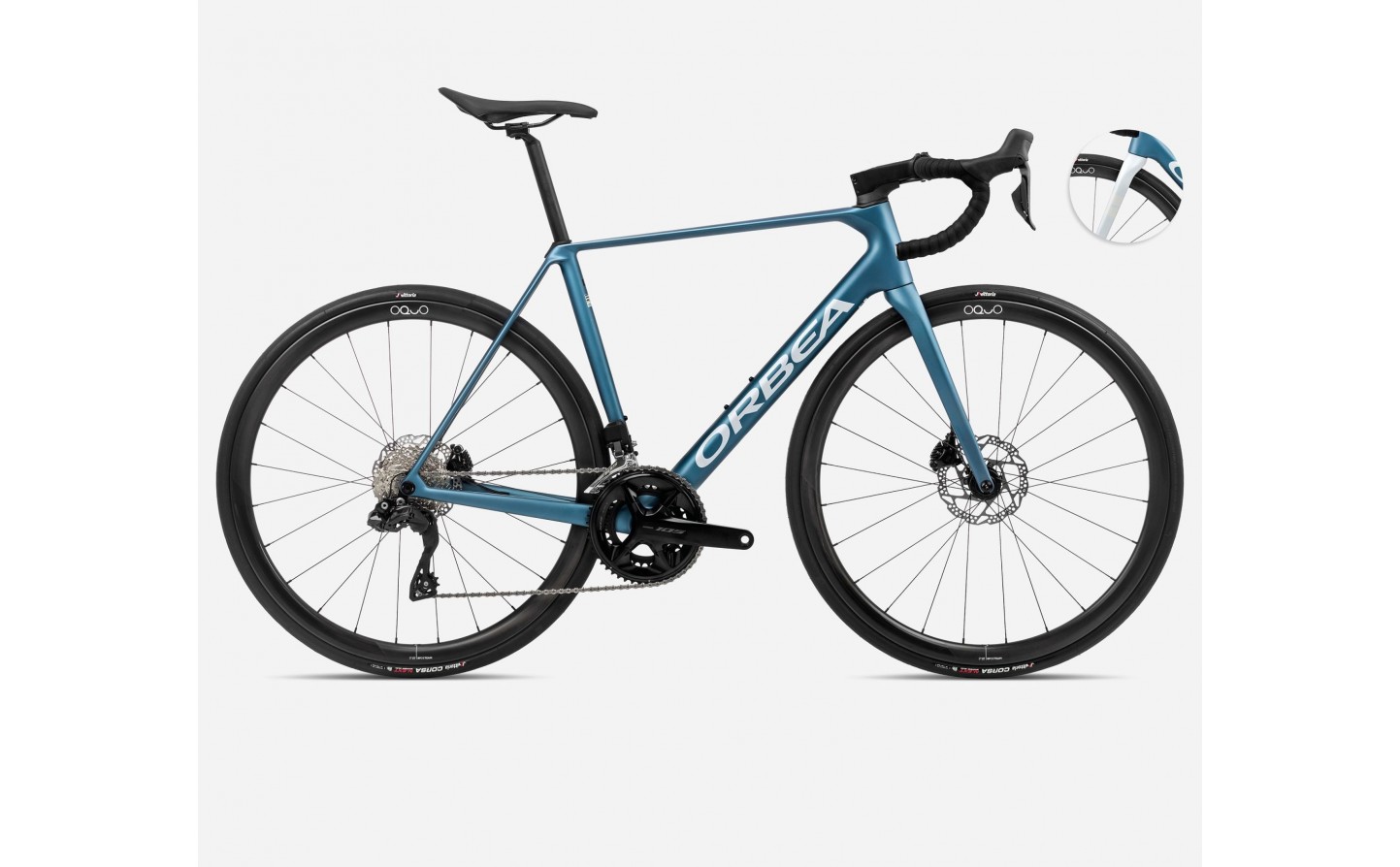

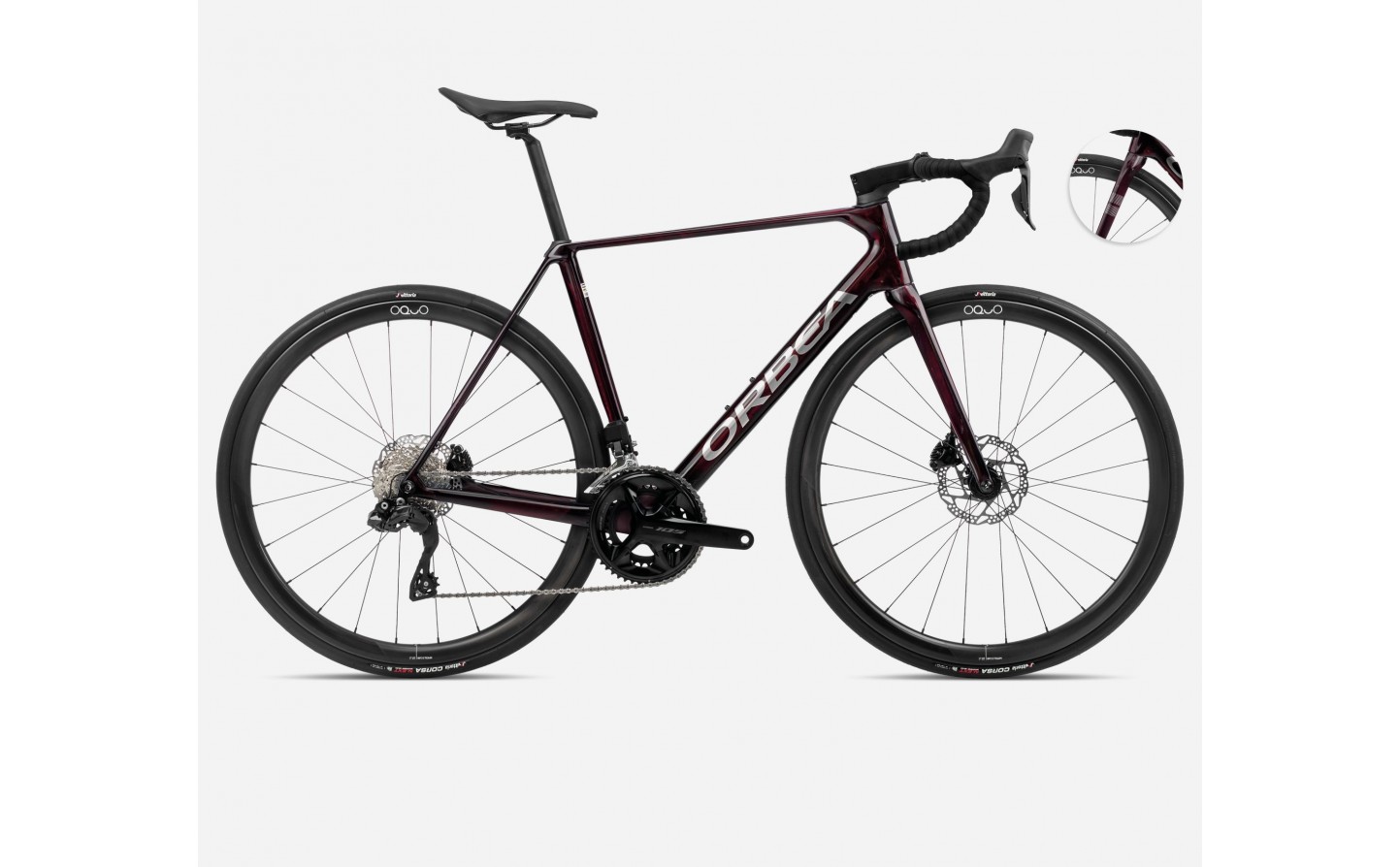

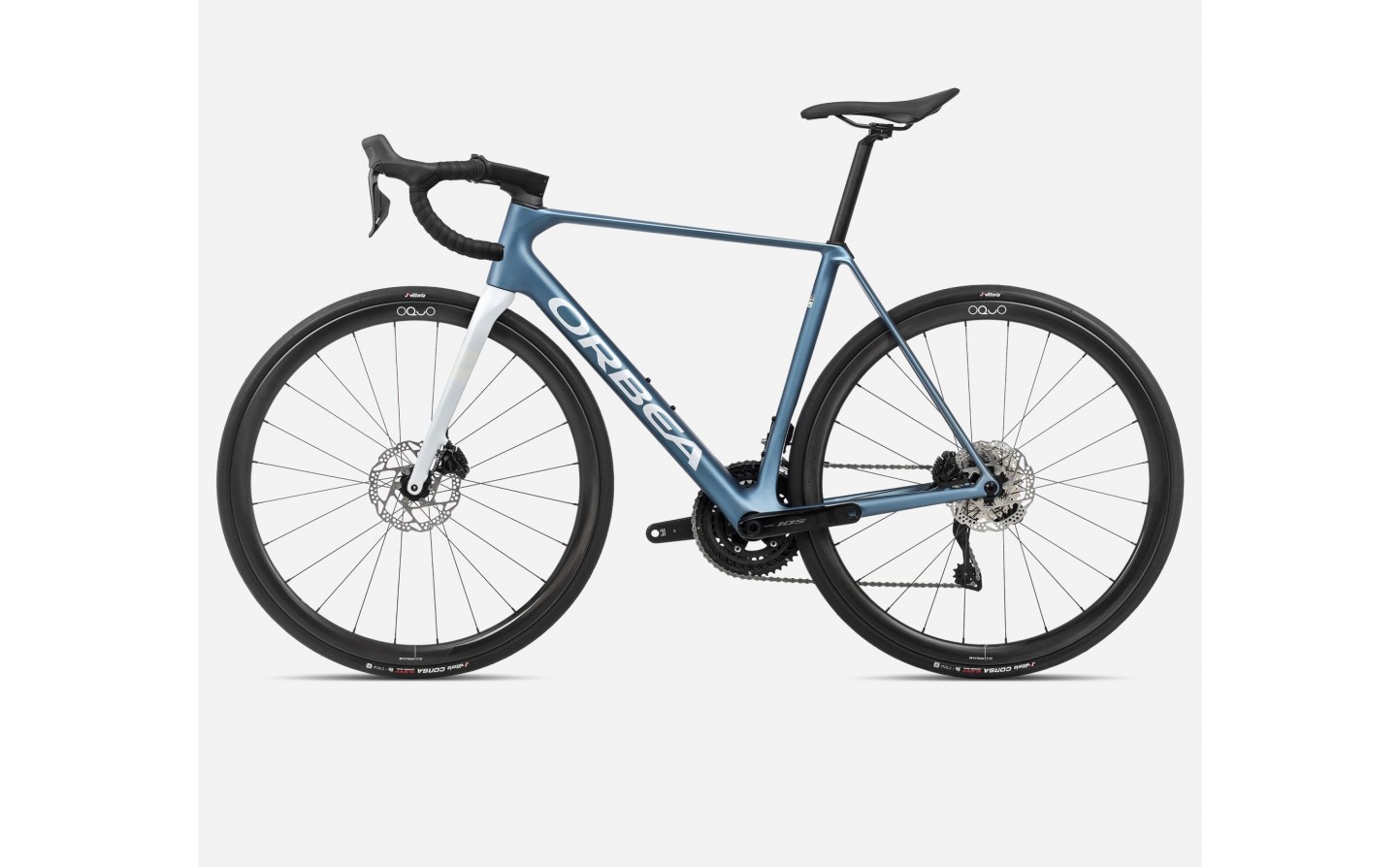

Bicicleta Orbea ORCA M35i |R110| 2024

Orbea

New

Bicicleta de carretera ORBEA con cuadro de carbono, transmisión Shimano 105 Di2 R7150 y frenos de disco Hidráulico Shimano R7170 Hydraulic Disc

More details

Before: 4.399,00 €

You save: approx. 15% disc.

3.739,15 €

Delivery time: 5-10 DAYS

Bicicleta Orbea ORCA M35i |R110| 2024

Bicicleta de carretera ORBEA con cuadro de carbono, transmisión Shimano 105 Di2 R7150 y frenos de disco Hidráulico Shimano R7170 Hydraulic Disc

ESPECIFICACIONES:

  • CUADRO Orbea Orca carbon OMR 2024, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing.
  • HORQUILLA Orbea Orca OMR ICR 2024, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1.
  • DIRECCION FSA 1-1/2" Integrated Aluminium Cup
  • PLATO Shimano 105 R7100 34x50t
  • MANETAS Shimano Di2 R7170
  • PIÑON Shimano 105 R7100 11-34t 12-Speed
  • CAMBIO Shimano 105 Di2 R7150
  • DESVIADOR Shimano 105 Di2 R7150
  • CADENA Shimano M6100
  • MANILLAR OC Road Performance RP31, Reach 80, Drop 125
  • POTENCIA OC Road Performance RP21, -6º
  • FRENO Shimano R7170 Hydraulic Disc
  • RUEDA Oquo Road Performance RP35TEAM, carbon Mini Hook rim, 35mm profile, Zipp ZR1 hub, 21mm internal width, Sapim Sprint Oxi spokes, 700C
  • CUBIERTA Vittoria Corsa N.Ext G2.0 Foldable 700x28c
  • EJE RUEDA DELANTERO Orbea Thru Axle 12x100mm M12x2 P1 Hollow
  • EJE RUEDA TRASERO Orbea Thru Axle 12x142mm M12x2 P1 Hollow
  • TIJA SILLIN Carbon, 27.2mm, Setback 20
  • SILLIN Fizik Aliante R5
  • CINTA MANILLAR Orbea Eva

*Nos reservamos el derecho a modificar la información y los componentes de los productos que aparecen en esta web sin previo aviso, incluido el equipamiento, las especificaciones, modelos, colores y materiales.


TALLA 47 49 51 53 55 57 60
1 - TUBO DE SILLÍN (C-T) 440 460 480 500 520 540 570
2 - TUBO HORIZONTAL (EFF) 510.3 522.7 535.9 548.5 560.4 576.1 590
3 - TUBO FRONTAL 110.5 118.2 134.6 152.9 173.1 191.2 218.3
4 - VAINA 408 408 408 408 408 408 408
5 - ALTURA EJE PEDALIER 268.5 268.5 268.5 270.5 270.5 270.5 270.5
6 - CAÍDA EJE PEDALIER 72 72 72 70 70 70 70
7 - DISTANCIA ENTRE EJES 971.8 975.4 980 981.2 991.4 1001.9 1015.6
8 - ÁNGULO FRONTAL 71 71.5 72.2 72.8 73 73.2 73.2
9 - ÁNGULO DEL SILLÍN 74.5 74 73.7 73.5 73.5 73.2 73.2
10 - ALTURA BASE 736.5 748.5 767.5 788.5 808.5 826.5 852.5
11 - LARGO DEL CUADRO 370 375 380 385 391 398 404
12 - ALTURA DEL CUADRO 506 515 533 552 572 590 616
13 - LONGITUD HORQUILLA 365 365 365 365 365 365 365



* La medida del manillar es centro-centro

Brake Disk
Season 2024
Group Shimano 105 Di2
Wheel Size 700MM
Stuff Carbon
