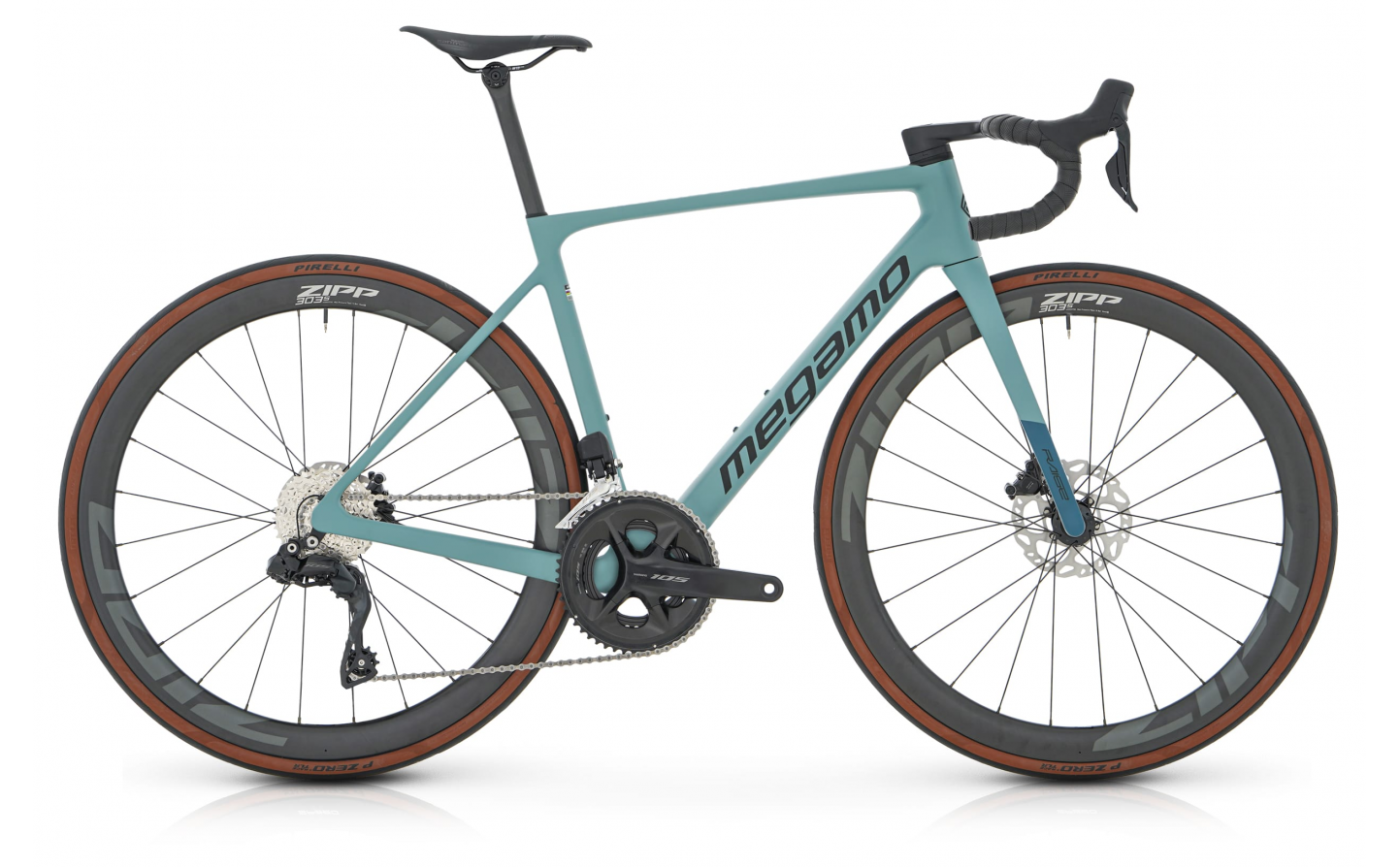

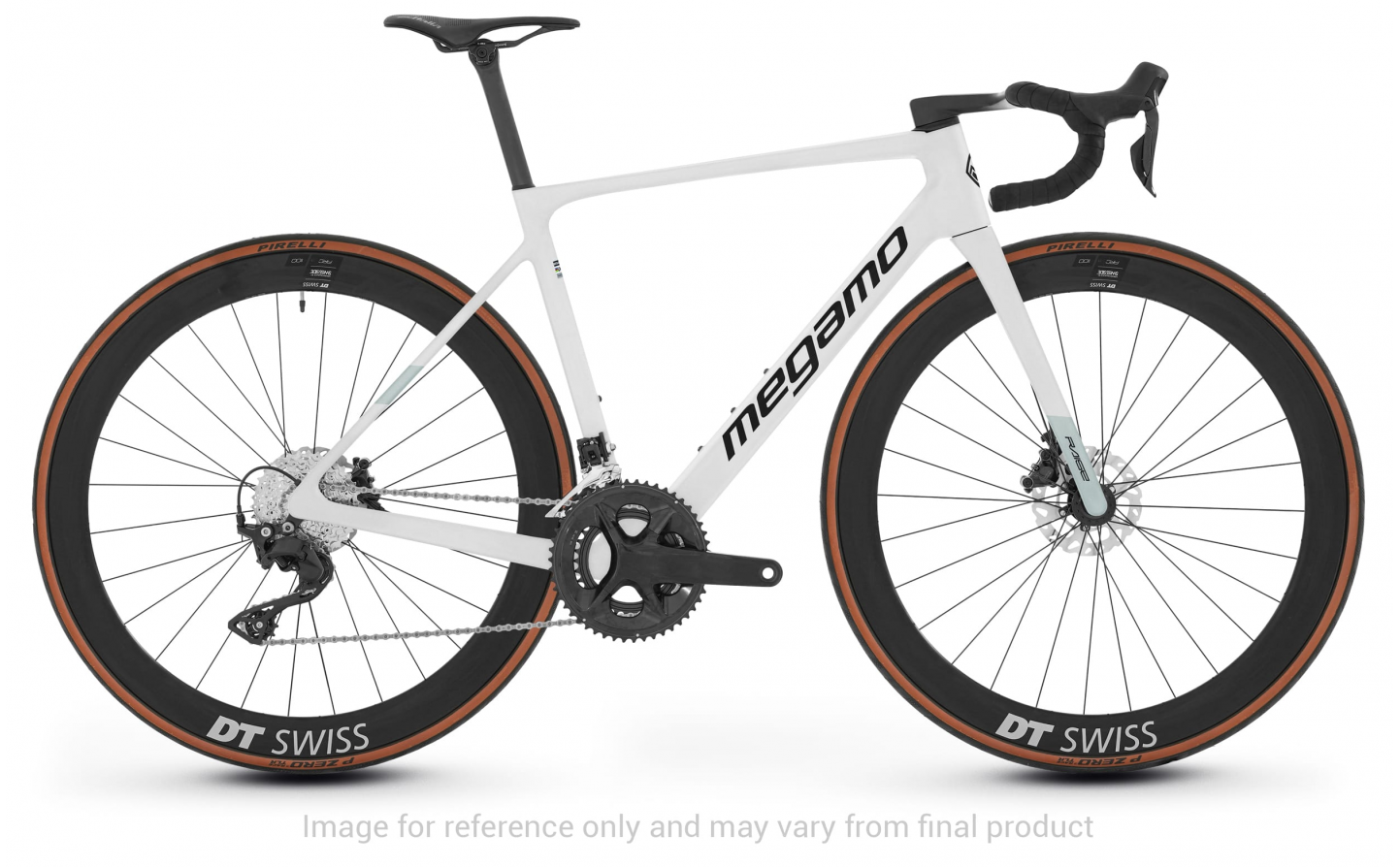

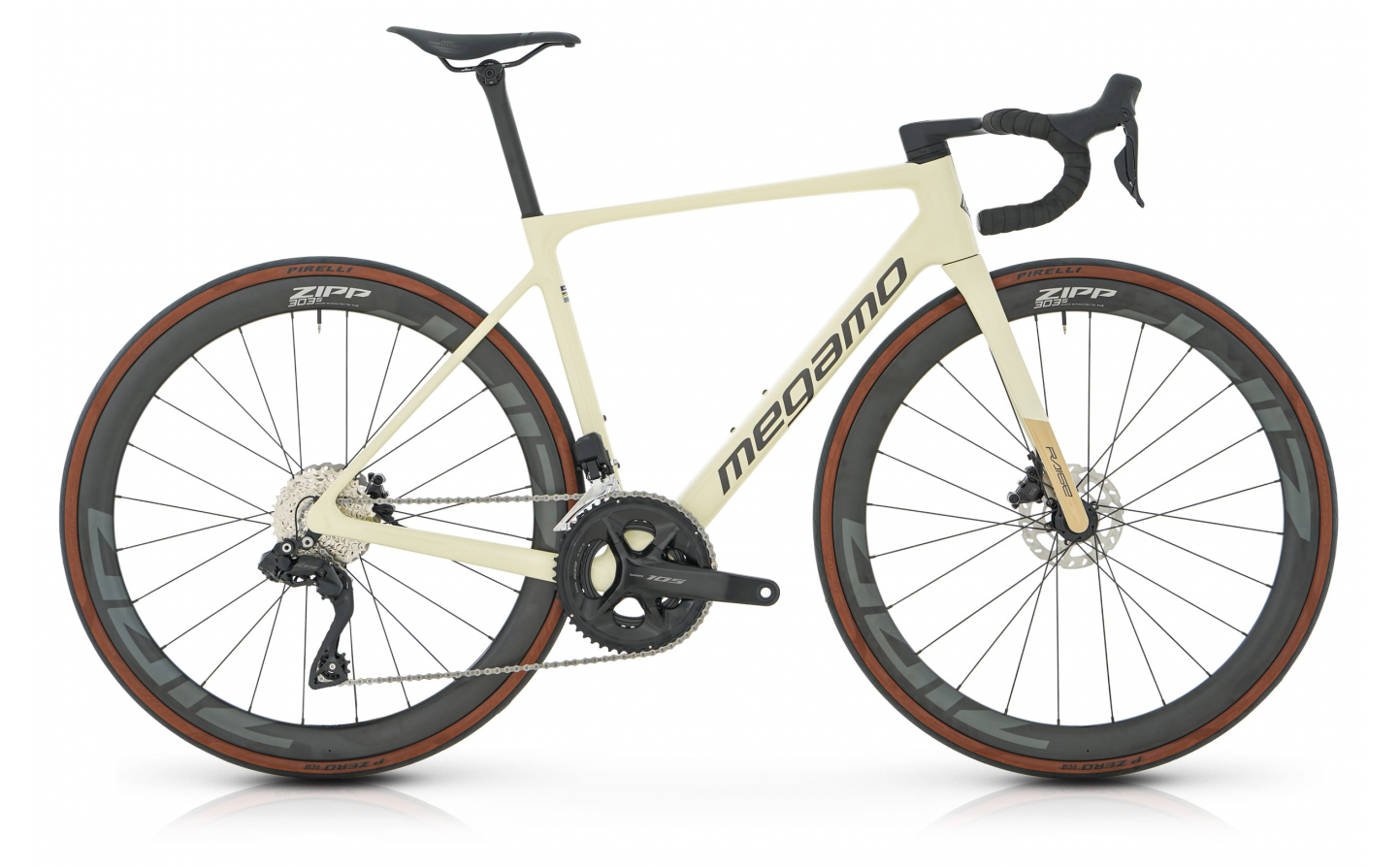

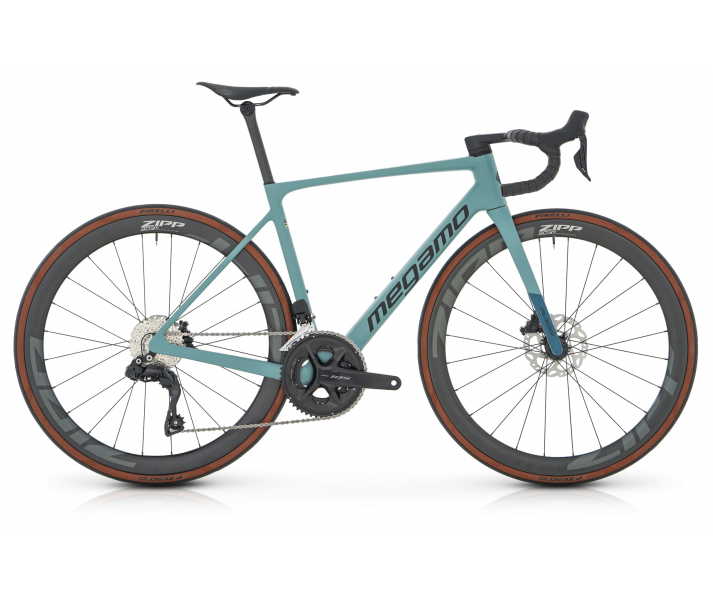

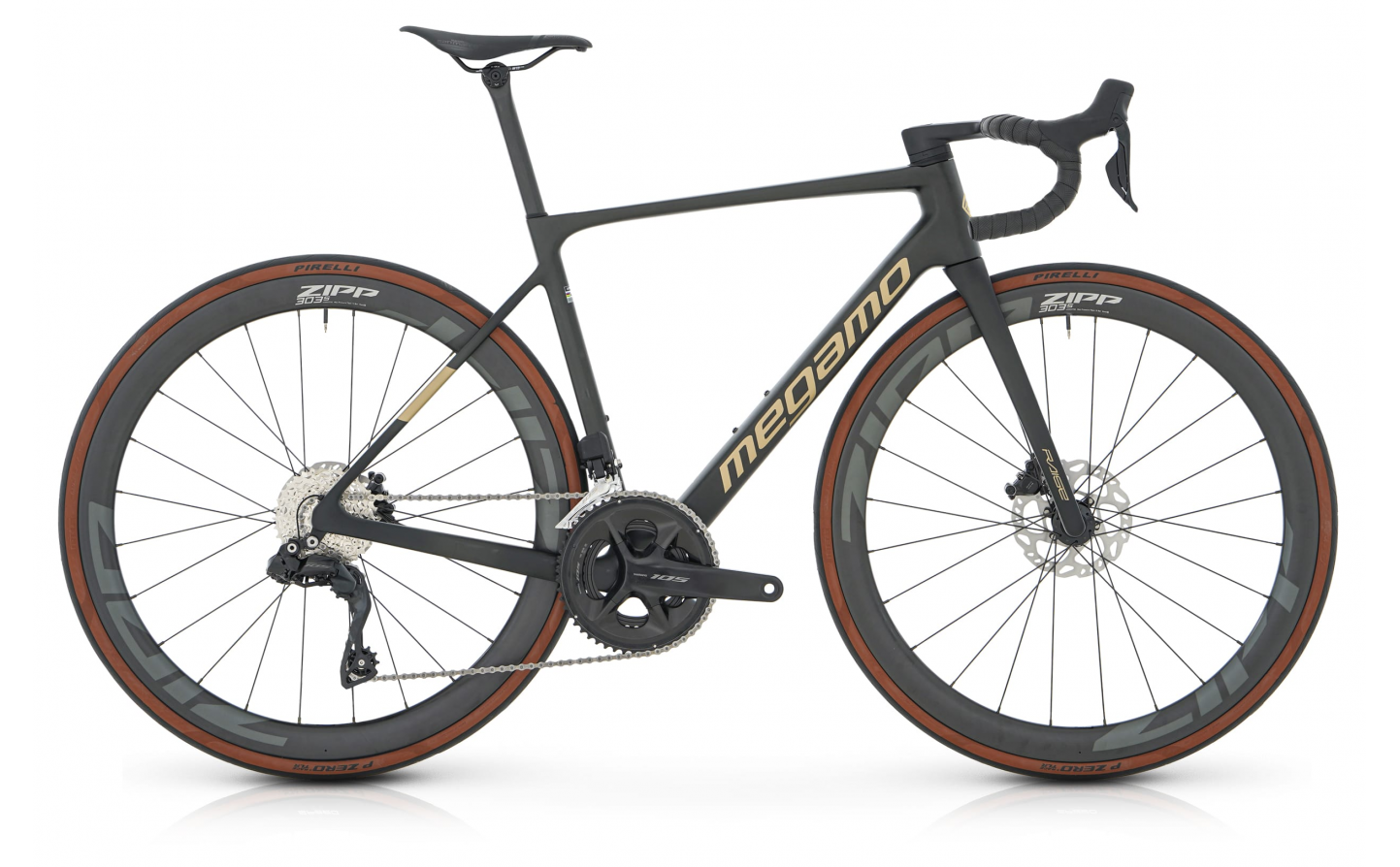

Bicicleta Megamo RAISE 15 CW 2025
Información técnica
Conjunto del cuadro
- Cuadro: Carbon Advanced Composite frame, Full Internal Cable Routing, Flat mount disc 12x142
- Horquilla: Carbon Advanced Composite fork, Full Internal Cable Routing, Flat mount disc 12x100
- Juego de dirección: Totally Internal Cable routing
Transmisión
- Cambio Trasero: Shimano 105 Di2 R7150 12s
- Manetas cambio: Shimano 105 Di2 R7150 12s
- Plato: Shimano 105 Di2 R7100 12s 36-52T
- Cassette: Shimano 105 Di2 R7100 12s 11-34T
Frenos
- Conjunto de frenos: Shimano 105 Di2 R7170 12s Hydraulic Disc
Ruedas
- Cubiertas: Pirelli P ZERO Race TLR Classic 30 - 622 SPEEDCore 127 tpi
- Ruedas: Zipp 303 S Carbon Tubeless Disc Brake Center Locking 700c
Componentes
- Manillar: Carbon Full Integratted Internal Cable Routing: 90/400 (XS), 100/400 (S), 110/420 (M,L), 120/440 (XL)
- Tija sillín: Aerodinamic Advanced Carbon Seat Post
- Sillín: Selle Italia Shortfit Open-fit Start Up 144
*Megamo se reserva el derecho a modificar cualquier componente, por uno de igual valor en caso de ser necesario, sin previo aviso.
Geometría
| Talla | T/T | C/S | S/T | H/T | REACH | STACK | BB OFFSET | FRONT ANGLE | REAR ANGLE |
|---|---|---|---|---|---|---|---|---|---|
| XS | 507 | 410 | 442 | 102 | 376 | 506 | 69 | 71.75° | 75.5º |
| S | 527 | 410 | 460 | 115 | 383 | 521 | 69 | 72.5° | 74.5º |
| M | 538 | 410 | 482 | 130 | 384 | 534 | 69 | 73° | 74º |
| L | 554 | 410 | 503 | 145 | 396 | 550 | 69 | 73.5° | 74º |
| XL | 572 | 410 | 535 | 172 | 402 | 576 | 69 | 73.5° | 73.5º |
| Brake | Disk |
| Season | 2025 |
| Group | Shimano 105 Di2 |
| Wheel Size | 700MM |
| Stuff | Carbon |
