Bh Sl1 2.9 Bicycle |LD293| 2023

Bh Sl1 2.9 Bicycle |LD293| 2023

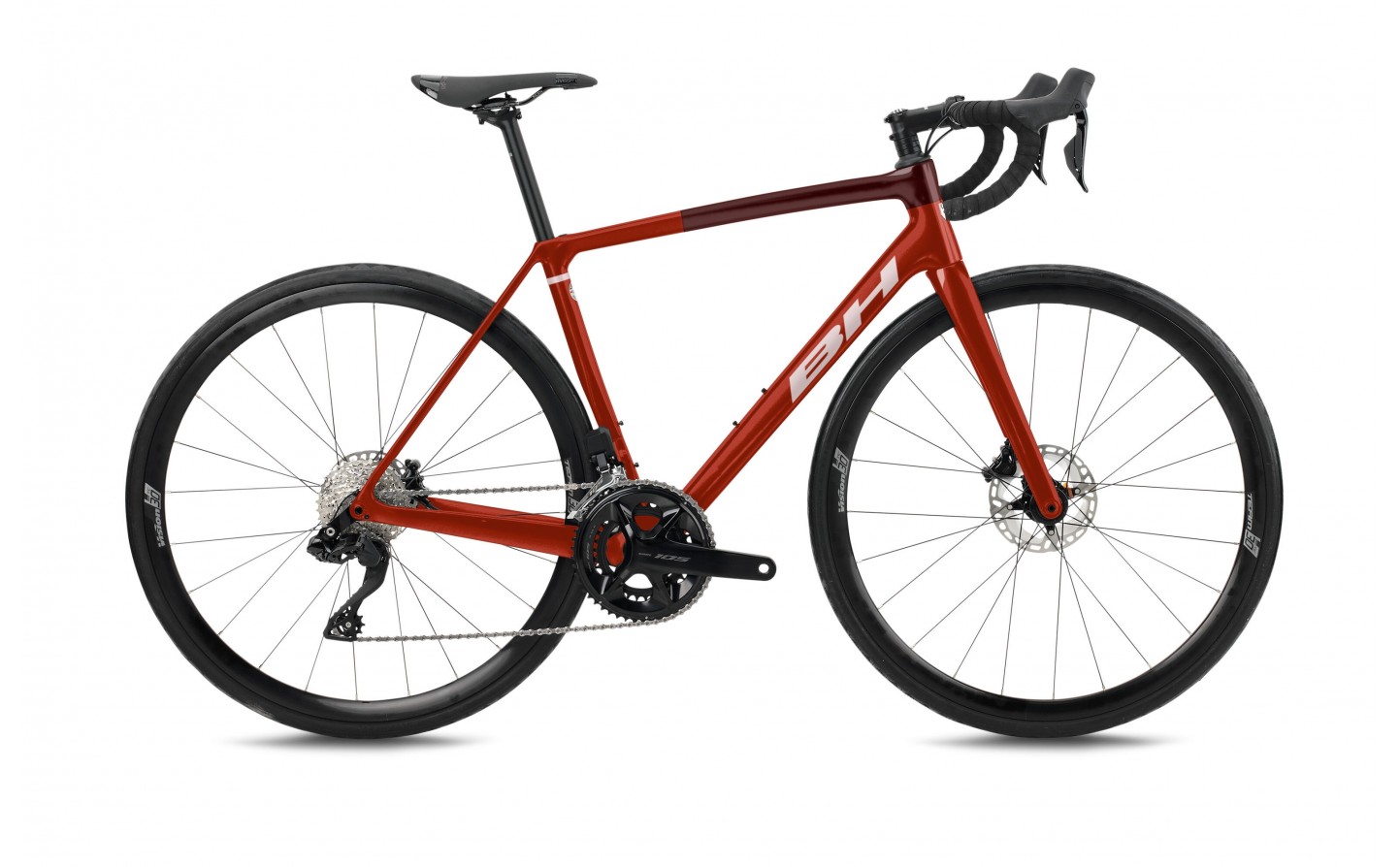

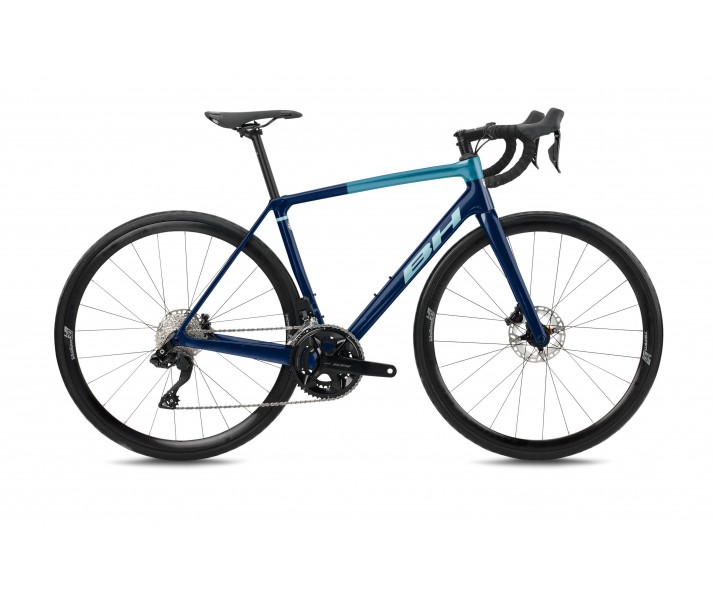

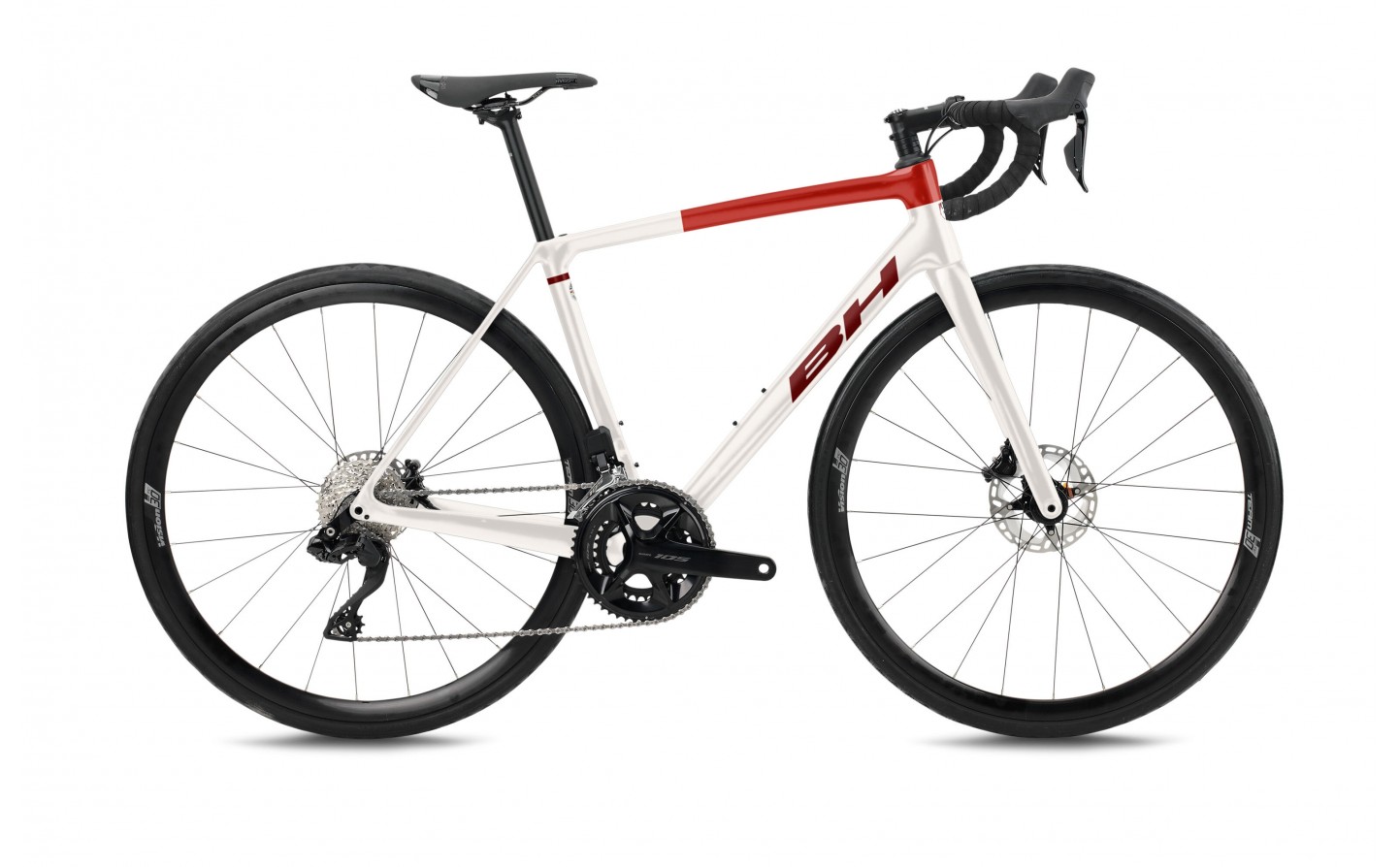

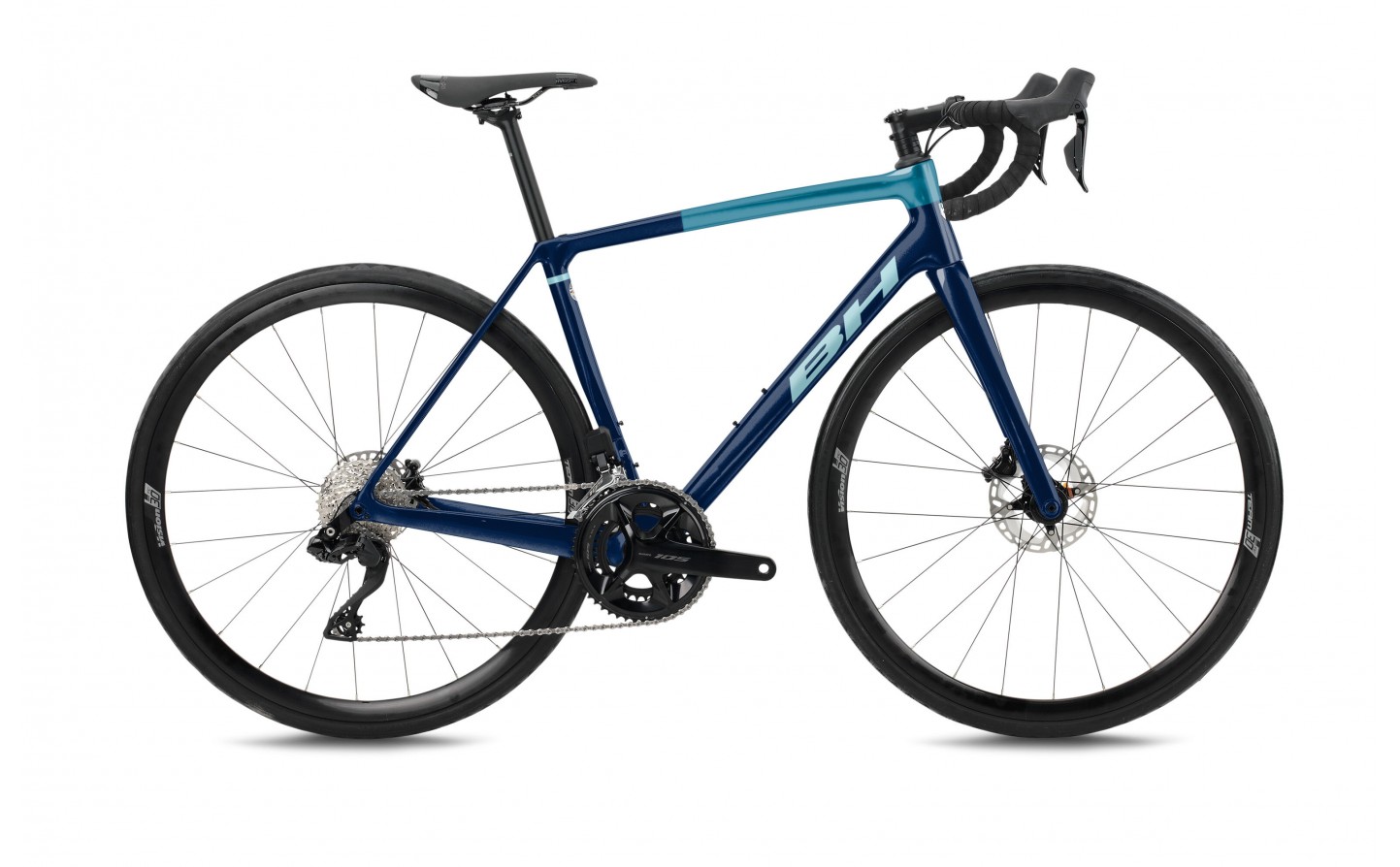

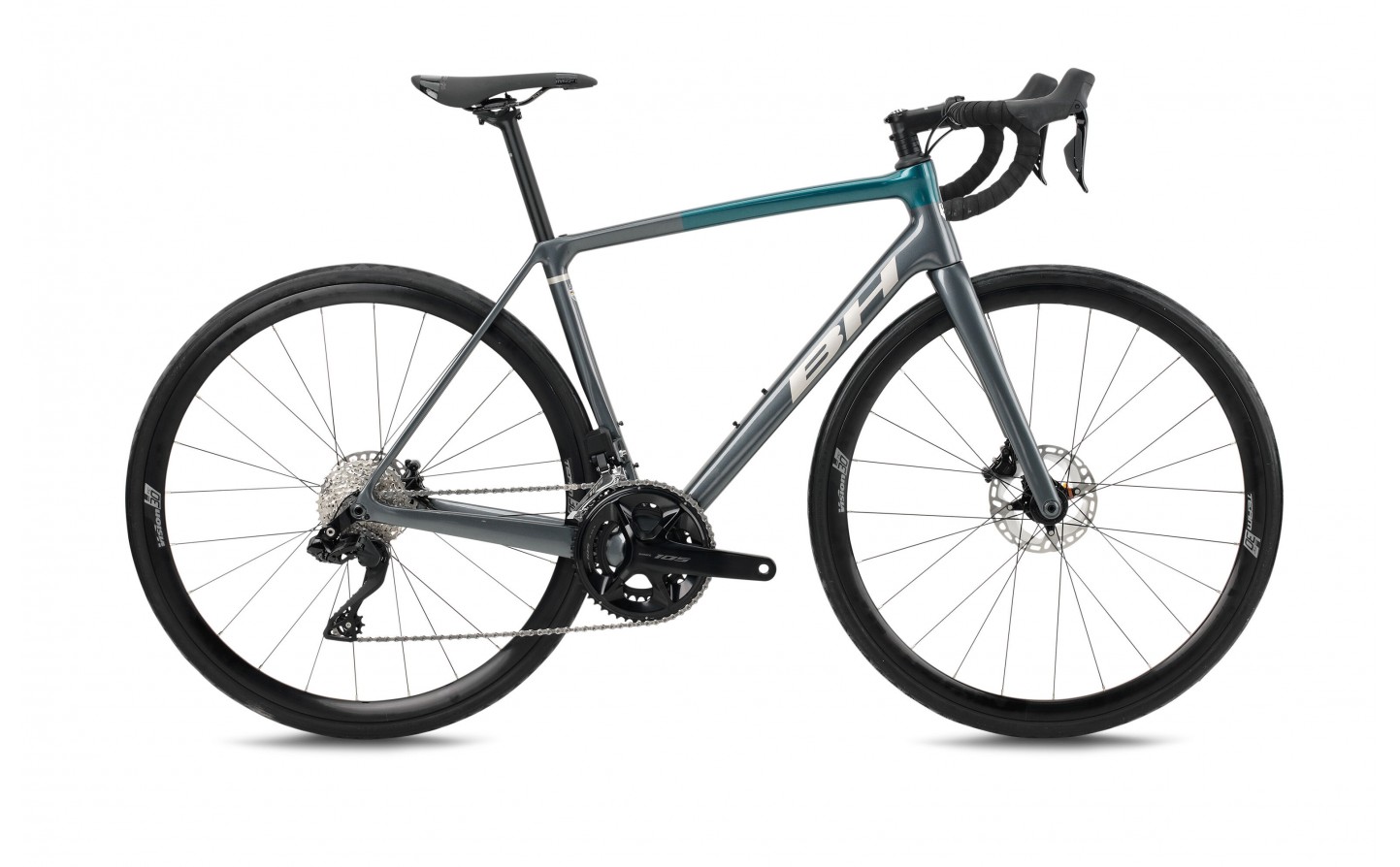

BH road bike, with carbon frame, Shimano 105 hydraulic disc brakes, SL1 Disc fork, and Shimano 105 Di2 transmission.

The final sprint of your weekend group ride. That relay at the front of your group to raise the pace a little more. Or that long port where you can measure yourself against your fellow travelers. Very different situations that today you can face with guarantees with the same bicycle. Rigidity, aerodynamics and lightness.

Extreme lightness and rigidity
The SL1 frame is made with Toray Carbon and with the HCIM-Hollow Core Internal Molding technology typical of Bh's high-end frames. The arrangement of the carbon fibers guarantees a rigid and light frame of 1,050 grams in the MD size.

Compact rear stay more reactive
A single piece of carbon that has been designed with specific straps that very reactively transmit the cyclist's power when pedaling. Allows 30mm wheel clearance.

Absolute Lateral Stiffness
The bottom bracket shell, with the BB386EVO system, is oversized to 86mm in diameter and the diameter of the lower diagonal tubes is increased to 80mm, which reduces the thickness of the tubes and increases torsional and rear rigidity.

Integrated closing system
This system adds rigidity and functionality to the assembly and ensures perfect locking of the seatpost without the need for large tightening torques.

Semi internal ICR wiring
The new SL1 frame incorporates the ICR system with which we achieve semi-internal wiring for a clean and cable-free frame.

Characteristics:

• Frame: SL1 DISC ICR MONOCOQUE, PC LAYUP
• Fork: SL1 DISC FULL INTEGRATED TAPEDER, FULL CARBON 1.5
• Power: BH SL
• Address: FSA ICR
• Shift lever: SHIMANO 105 DI2 HYDRA
• Rear derailleur: SHIMANO 105 DI2
• Derailleur: SHIMANO 105 DI2
• Bottom bracket: SHIMANO 105 50/34
• Cassette: SHIMANO 105 11/34
• Chain: SHIMANO 105
• Front Brake: SHIMANO 105 HYDRAULIC
• Rear Brake: SHIMANO 105 HYDRAULIC
• Wheel set: VISION TEAM TC30
• Covers: BH 700X28
• Saddle: PROLOGO NAGO RS
• Saddle Closure: SL1 INTEGRATED
• Seatpost: BH LITE 27.2
• Handlebar: BH LITE COMPACT

GEOMETRY AND ERGONOOMETRY
