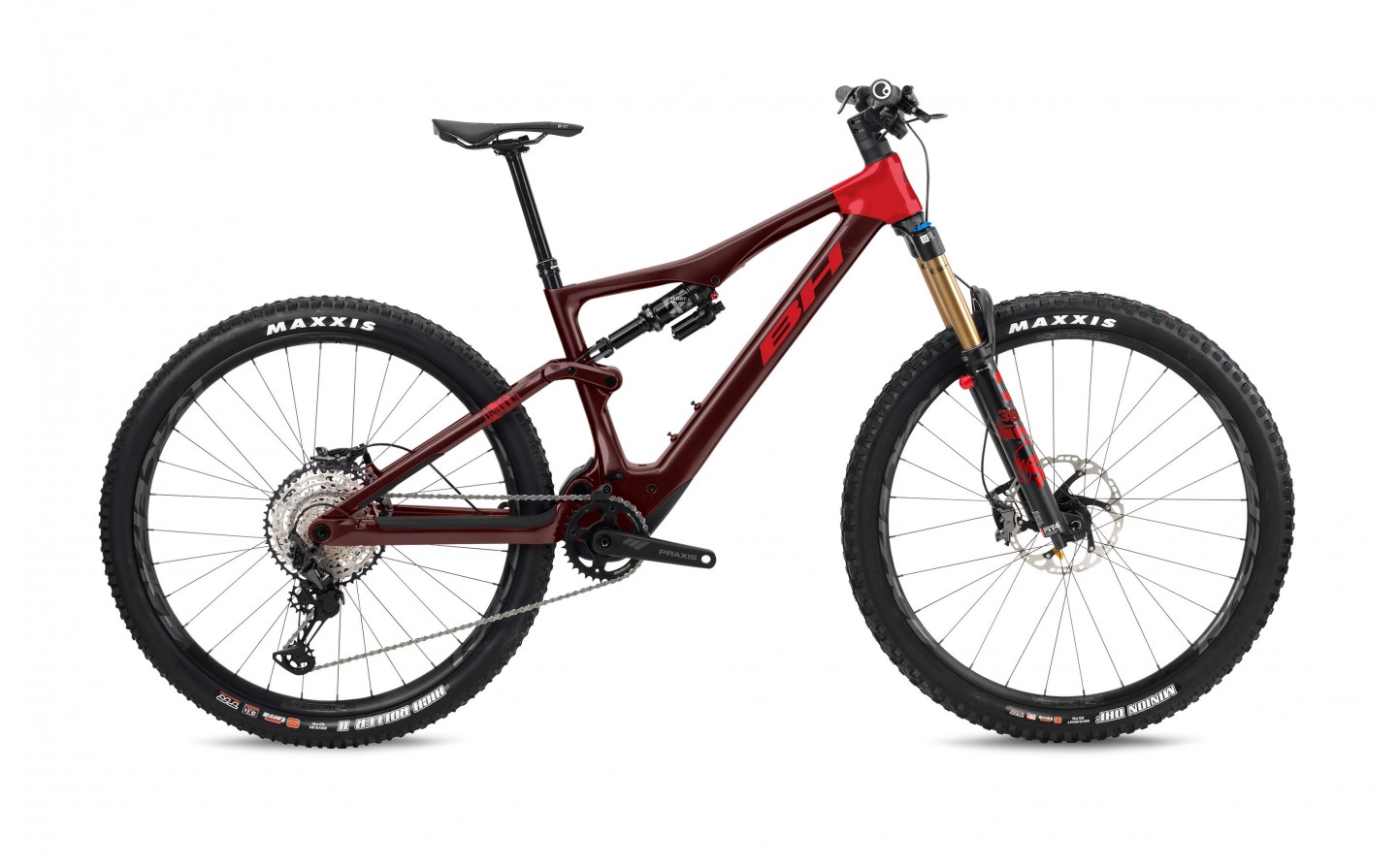

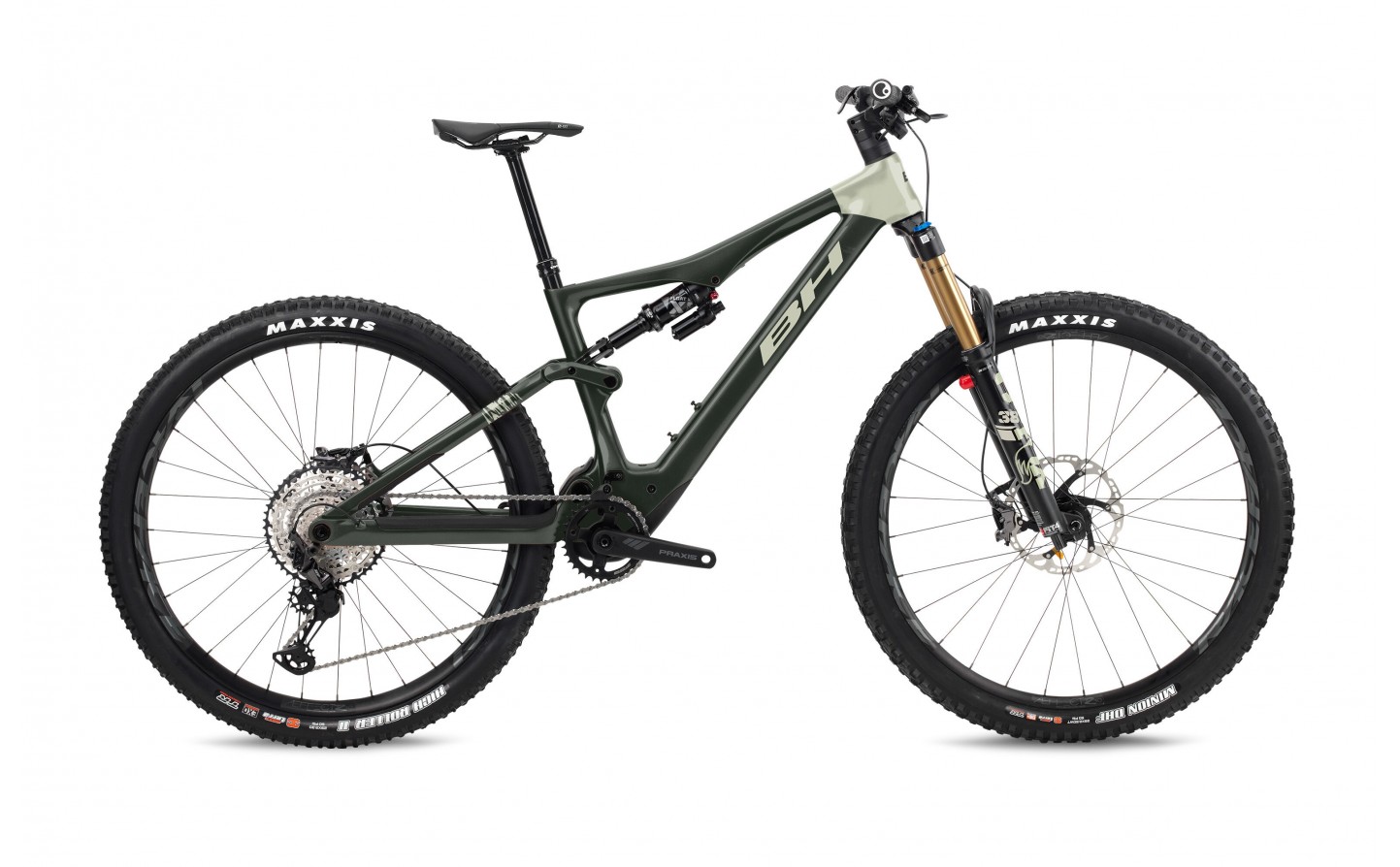

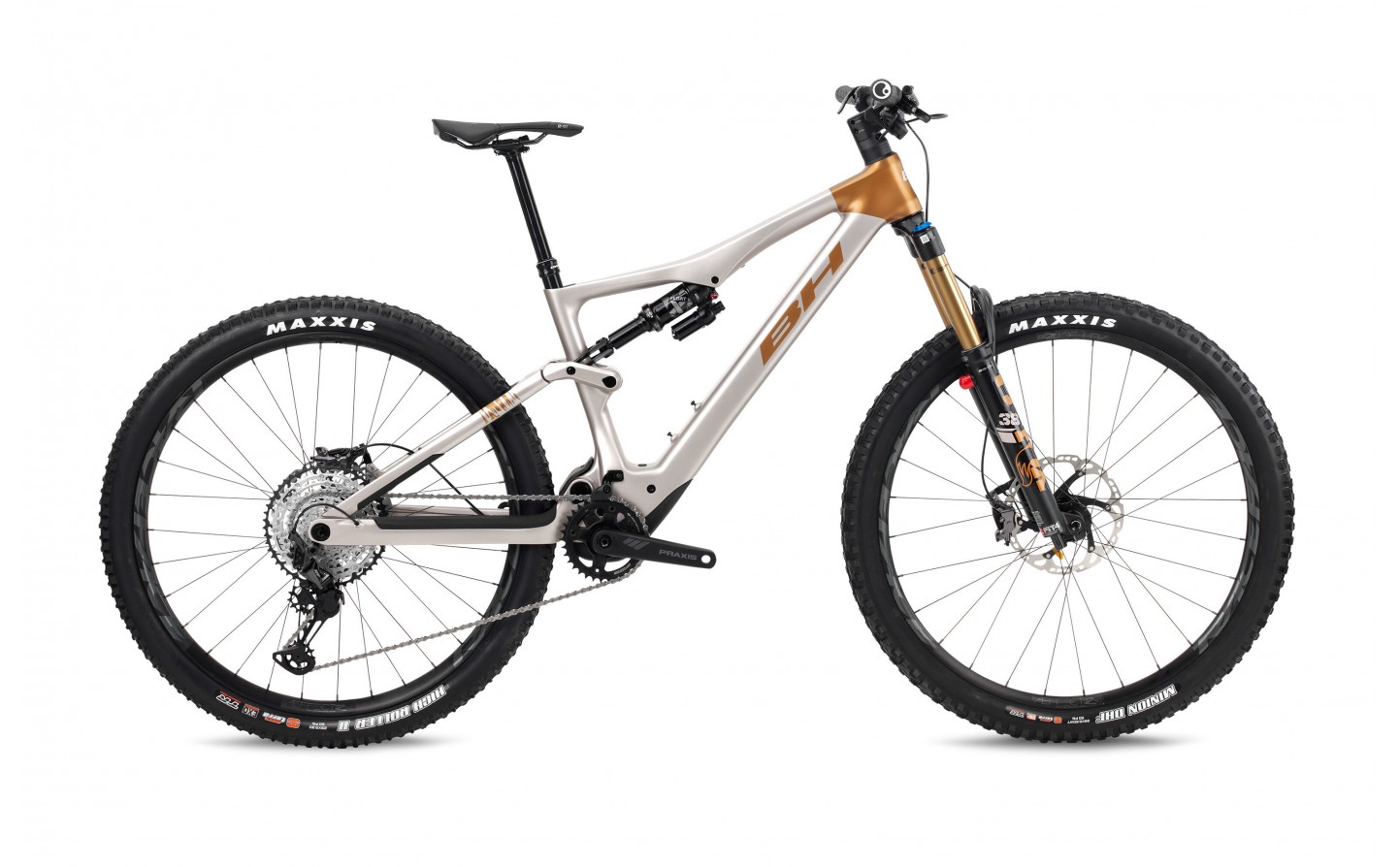

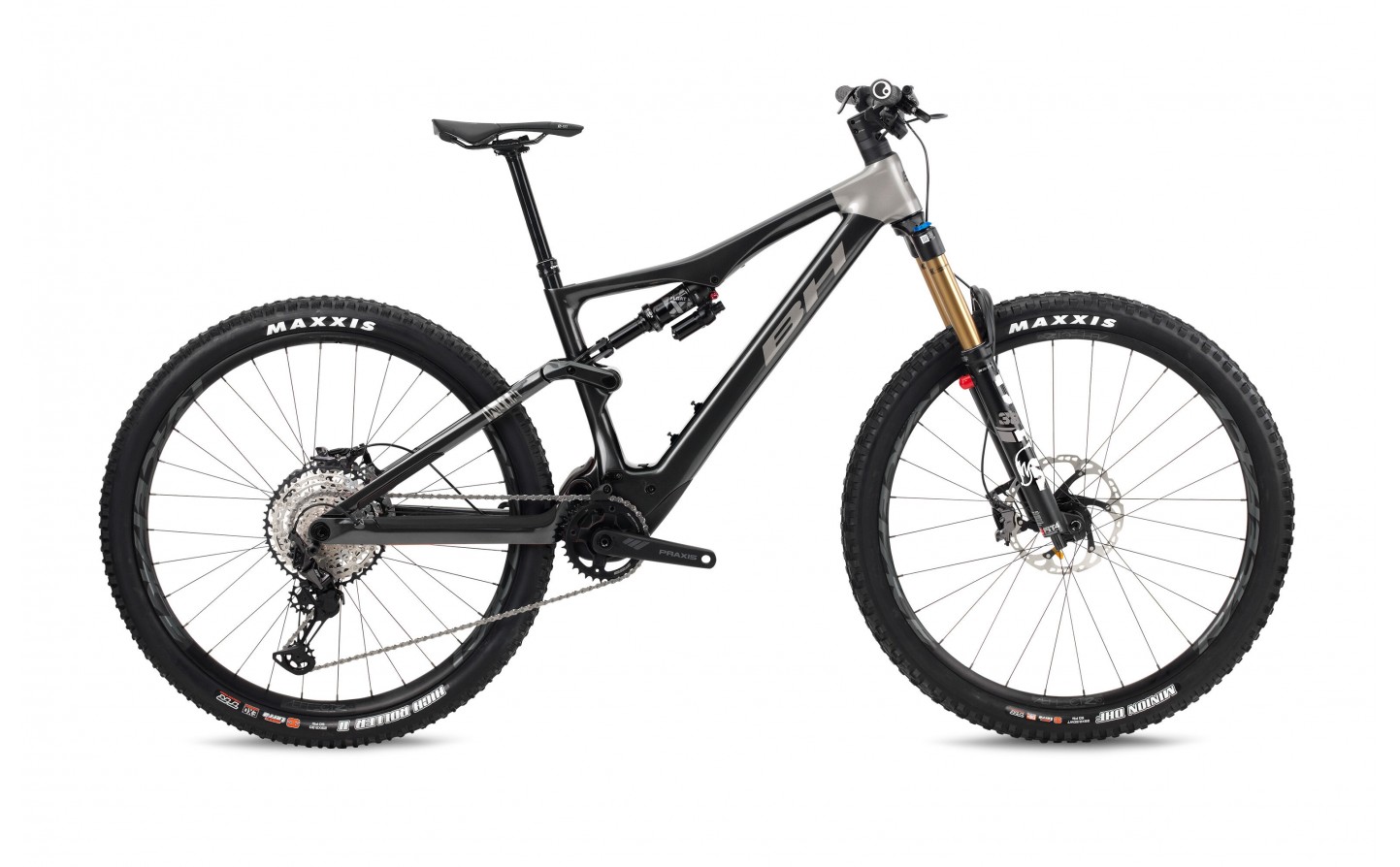

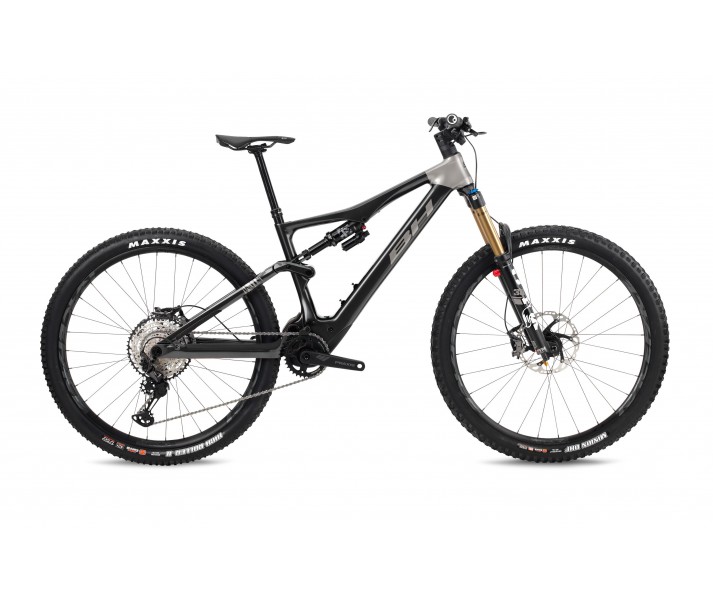

Bh Ilynx Trail Carbon 8.8 Bicycle |EC883| 2023

Bh Ilynx Trail Carbon 8.8 Bicycle |EC883| 2023

BH electric dual suspension mountain bike, with carbon frame, Shimano XT 4 Piston brakes, Fox 36 Float fork, BH 2EXMAG motor and Shimano SLX /

You have agility, a balanced geometry, plenty of rigidity, add lightning-fast acceleration and additional push to each pedal stroke. Now you have the most fun eMTB at your disposal any day of the week and at any time. And every day can be epic.

150mm
The iLynx Trail offers 150mm of travel, with the Split Pivot suspension system to be able to ride with it on any terrain. Maintaining more than 100% of the Antisquat -which guarantees pedaling efficiency- and the Brake Squat -which guarantees optimal braking.

Ballistic Carbon Layup
The iLynx Trail Carbon have been built in carbon, using HCIM- Hollow Core Internal Molding carbon molding technology that allows the weight of the frame and link to be reduced to a maximum. For the construction, Ballistic Carbon Layup carbon fibers have been used that offer great resistance to impacts. Obtaining a frame weight of only 1,975g.

Oversized main shaft
The iLynx Trail frame has maximum rigidity due to the main suspension axis being oversized, optimizing the rigidity of the front and rear triangles and increasing torsional rigidity. A geometry very similar to the conventional BH Lynx Trail range, with a Only 451mm at the rear, it allows for dynamic driving and makes handling on downhills noticeably easier.

Superboost 157x12
The new Super Boost increases the solidity and resistance of the rear wheel thanks to better 'spring' or tension on both sides of the wheel. Together with short chainstays that significantly improve handling on downhills and a wide wheel arch for wider tires of up to 2.4'.

BH2EXMAG Gen 2 Engine
Optimize assistance by improving the user experience. New telemetric torque sensor, for 300% progressive and very silent assistance.

Xpro Plug & Ride additional battery
It adds 180Wh of capacity, reaching a total of 720 Wh and up to 175 km of autonomy.

CHARACTERISTICS:

• Frame: 150 MM FS CARBON 29', BC LAYUP, INTERNAL CABLE ROUTING
• Shock: FOX FLOAT FLOAT X PERFORMANCE
• Fork: FOX 36 FLOAT FACTORY 150MM 15QR
• Stem: BH EVO 35 FIT
• Address: ACROS AIF-560 ICR BL
• Shift levers: SHIMANO SLX
• Rear derailleur: SHIMANO XT 12SP
• Bottom Bracket: PRAXIS 34T SB-165MM
• Cassette: SHIMANO CSM7100 12SP (10-51T)
• Chain: SHIMANO CNM6100
• Front brake: SHIMANO XT 4 PISTON 203MM
• Rear brake: SHIMANO XT 4 PISTON 203MM
• Wheel Set: RACE FACE AEFFECT 30 TR
• Tires: MAXXIS MINION TPI120 TERRA EXO TR 29'X2.5/2.4
• Hubs: RACE FACE
• Spokes: STAINLESS STEEL
• Saddle: PROLOGO PROXIM W450 STN
• Saddle closure: INTEGRATED
• Seatpost: RACE FACE DP AEFFECT 31.6
• Handlebar: RACE FACE AEFFECT RISER 35 780MM
• Grips: ERGON GE10
• Sheath Protector: INTEGRATED
• System: NR SYSTEM
• Battery: 540WH
• Engine: BH 2EXMAG
• Autonomy: UP TO 130 KM
• Display: BH I-REMOTE

Geometry

*Guidative measures

*ATTENTION NON-BINDING IMAGE
