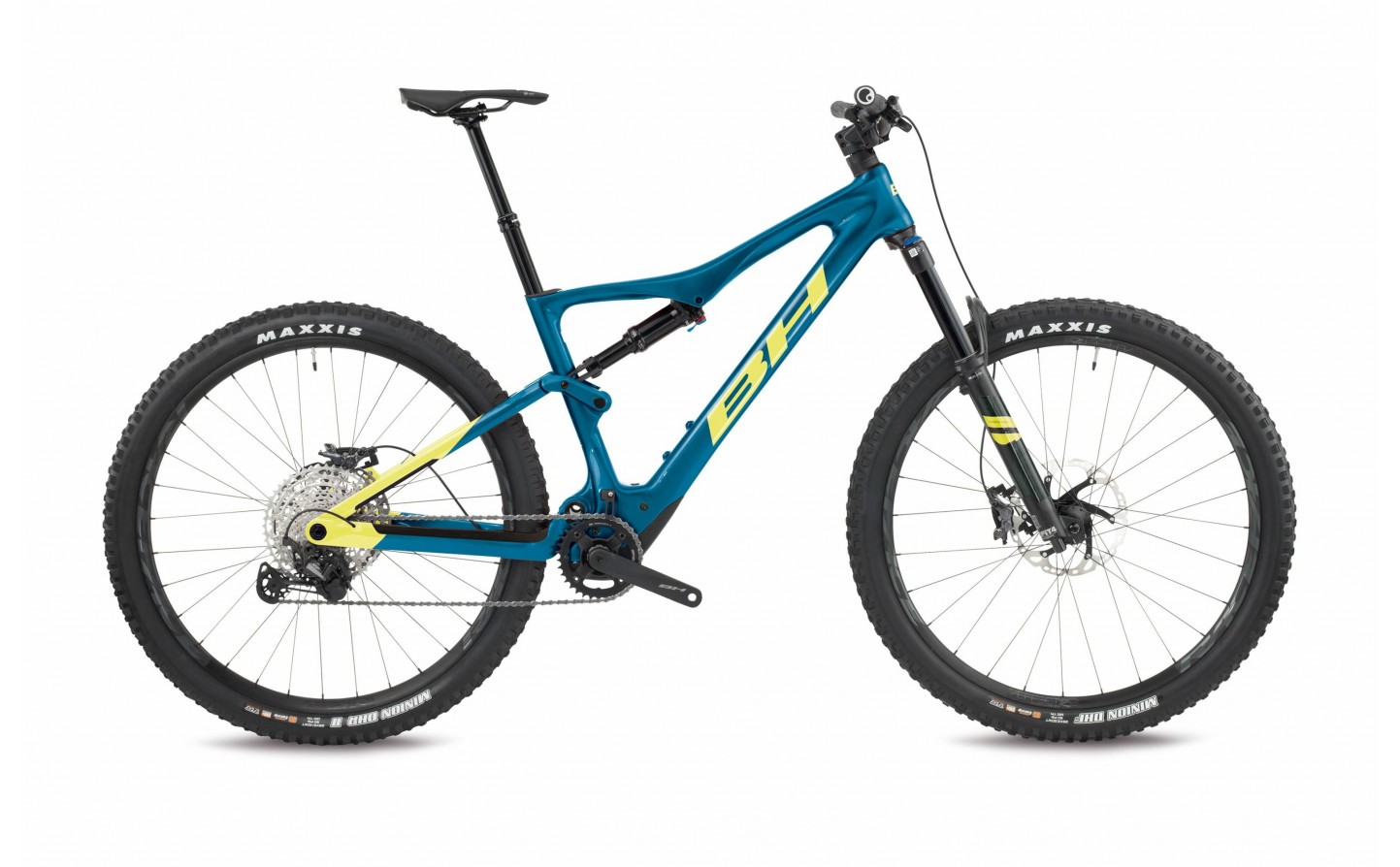

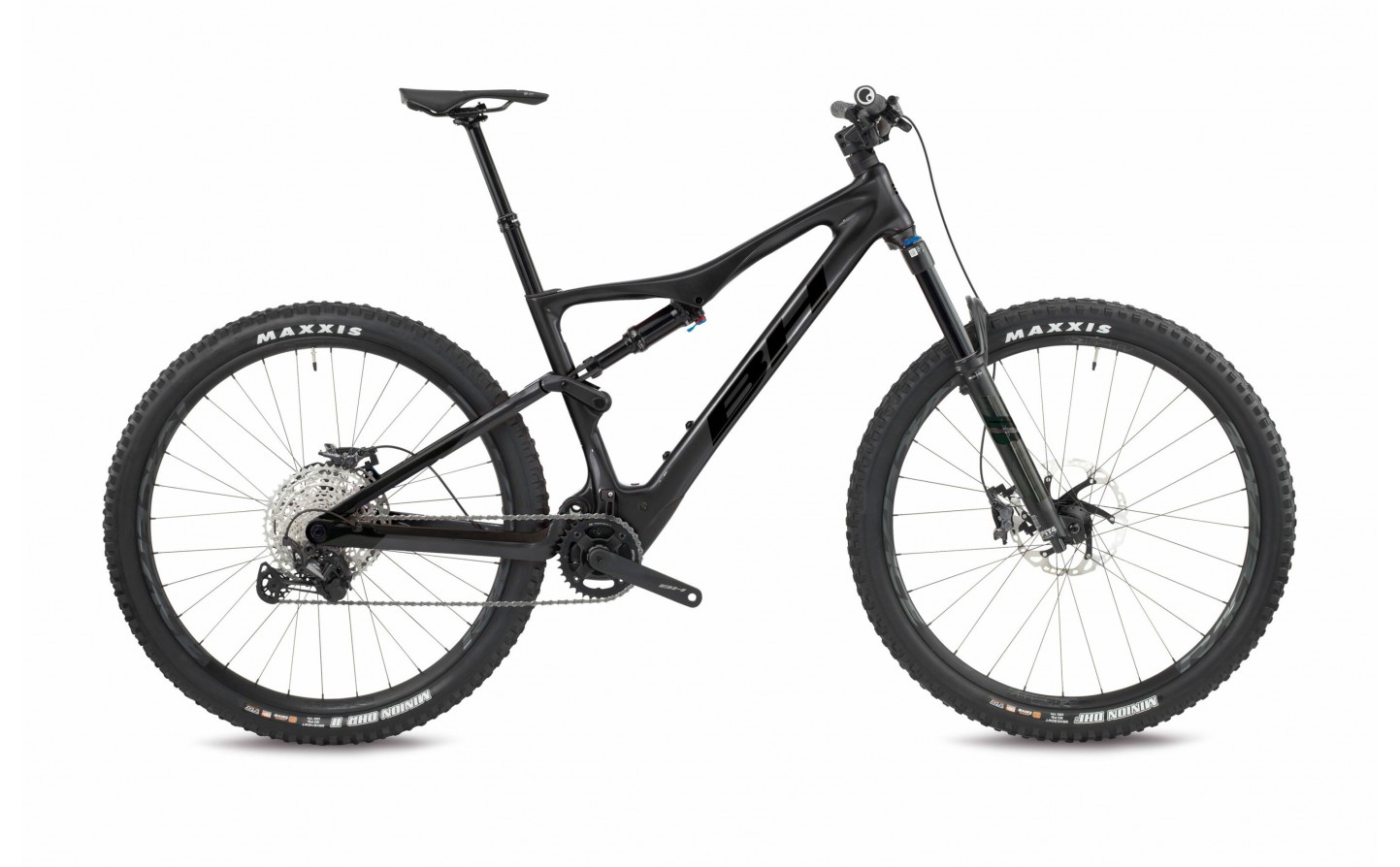

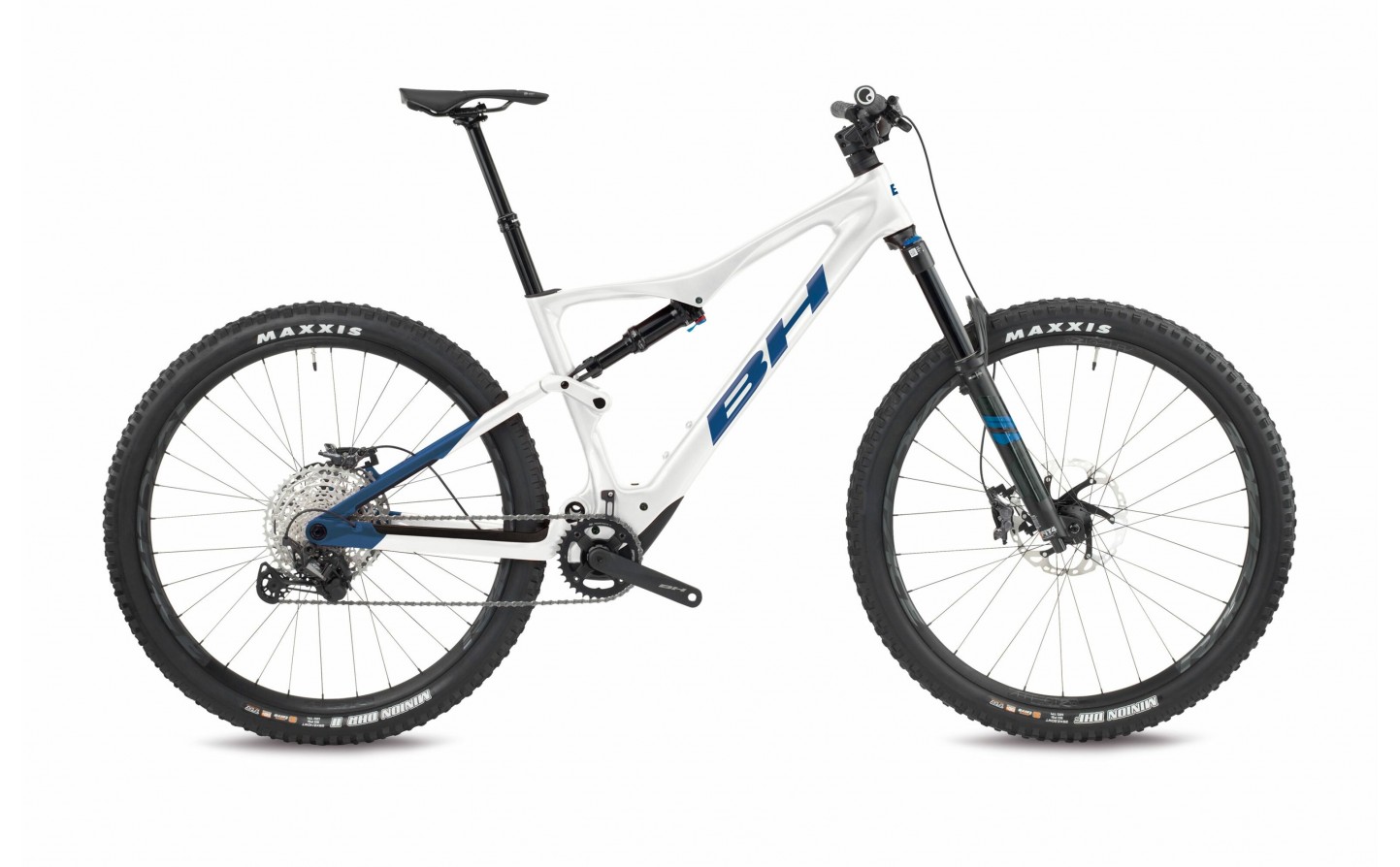

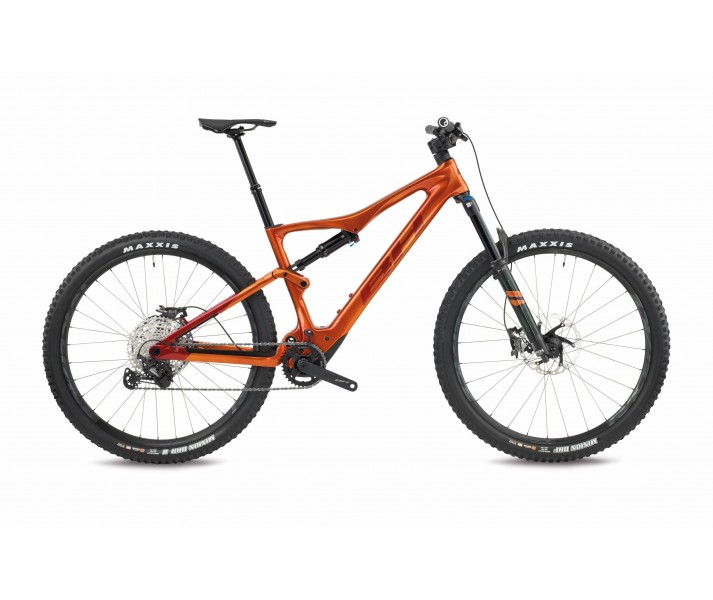

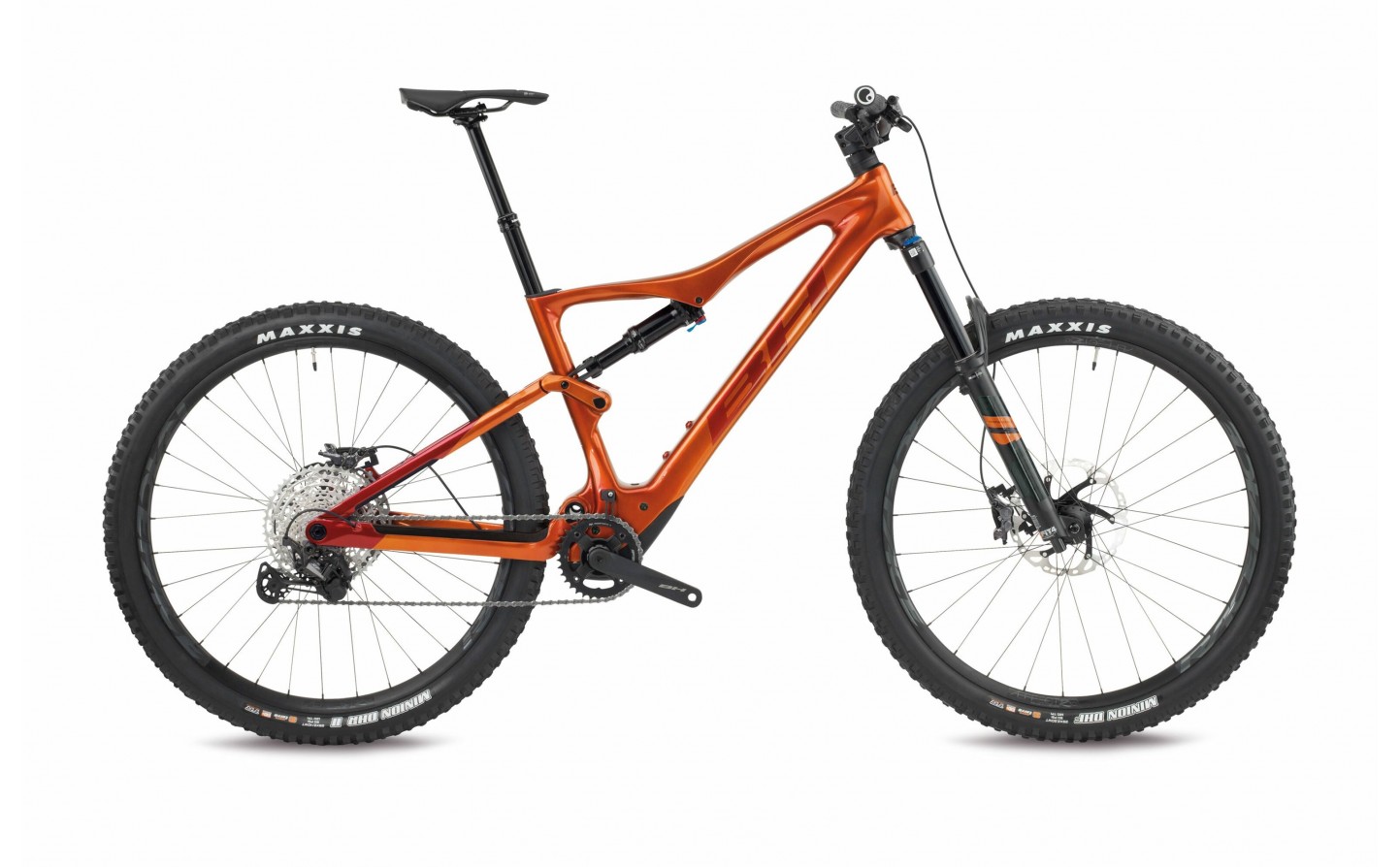

BH iLYNX TRAIL CARBON 8.6 Bicycle |EC862| 2022

BH iLYNX TRAIL CARBON 8.6 Bicycle |EC862| 2022

Double BH electric mountain bike, with carbon frame, Shimano MT520 4 Piston 203mm brakes, Shimano XT transmission, 12 speeds.

+ KILOMETERS

Up to 130Km or 175Km of autonomy, you choose. 540Wh battery. Being able to add the Additional XPro Battery for a total of 720Wh and up to 220km of autonomy

LIGHTWEIGHT, COMPACT, POWERFUL AND VERY VERY QUIET

The 2ESMAG motor is integrated into the frame and has minimal visual impact and a low center of gravity and is protected by two side casings that guarantee an insulating and hermetic seal. (take a walk). Very quiet. Weight 2.2Kg. Frictionless Power 250W Torque 65Nm Cadence 110rpm Q-Factor 163mm

CHARACTERISTICS:

• Frame: 150mm Full Susp. Carbon29' Internal Cable Routing, Acros ICR
• Shock: FOX FLOAT DPS Performance
• Fork: FOX 36 FLOAT Performance 150mm 15QR
• Stem: BH Evo 31 Fit
• Address: Acros AIF-543 ICR BL.
• Shift levers: Shimano Deore
• Rear derailleur: Shimano XT 12sp
• Bottom Bracket: FSA 34T SB-165mm
• Cassette: Shimano CSM8100 12sp (10-51T)
• Chain: Shimano CNM6100
• Front brake: Shimano MT520 4 Piston 203mm
• Rear brake: Shimano MT520 4 Piston 203mm
• Wheel set: Race Face Aeffect 30 TR
• Tires: Maxxis Minion TPI120 Terra EXO TR 29'X2.5/2.4
• Hubs: Race Face
• Spokes: Stainless Steel
• Saddle: Prologo Proxim W450 Stn
• Saddle closure: Alloy
• Seatpost: Race Face DP Aeffect 31.6
• Handlebar: Race Face Aeffect Riser 35 780mm
• Grips: Ergon GE10
• Sheath protector: Integrated
• Kid upgrade (not included): FIT Light Cable
• System: NR System
• Battery: 540Wh
• Engine: BH 2EXMAG
• Autonomy: Up To 130 Km
• Display: BH I-Remote

*ATTENTION NON-BINDING IMAGE
